Name: ADP51B62M02-10pk Piezoresistive Sensor for Washing Machine Control Board - 10 UNITS
Brand: Panasonic
SKU: (Shelf A Box A6)
Price: 150.0 USD
Availability: InStock
Rating: 4.81 (26 reviews)

ADP51B62M02-10pk Piezoresistive Sensor for Washing Machine Control Board - 10 UNITS

Roll over image to zoom in Click on image to zoom

What problems does this part fix?

Drains nonstop and won't start a cycle

Error codes: F3E1 (Whirlpool / Maytag top-load)

What it does: Water-level pressure sensor that solders onto Whirlpool / Maytag top-load control boards. 10 sensors for repair shops.

Other possible solutions

Try first:

Read the error codes in diagnostic mode
Check the pressure hose from the tub to the board for kinks, water or a clog

Also consider: Single sensor

Key features

Genuine OEM Panasonic replacement part
Pack of 10 replacement water level pressure sensors for washer control board repair
Primary water level sensor for Whirlpool / Maytag / Amana vertical modular washer control systems
Suits washer control boards from many makes and models built from 2009 to current
Through hole mount design that solders directly onto the washer control board
Piezoresistive gage sensor rated 0.87 PSI max with a 0.5 to 4.5V range

This is the replacement pressure sensor for washing machine control boards from many makes and models of units from 2009-current.

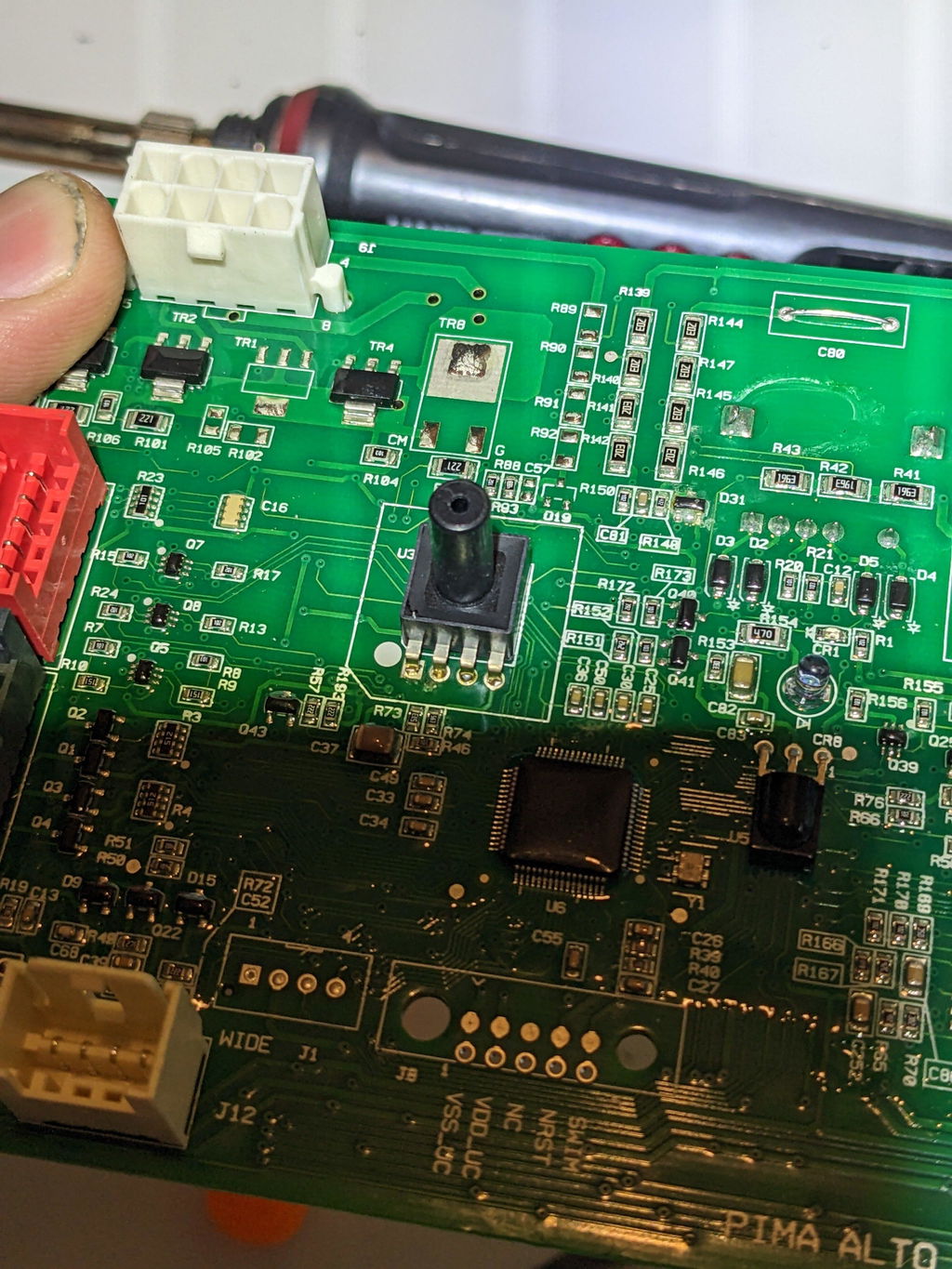

This is the primary water level sensor for Whirlpool / Maytag / Amana control systems from the Pima Alto label, used in Vertical Modular Washing Machines.

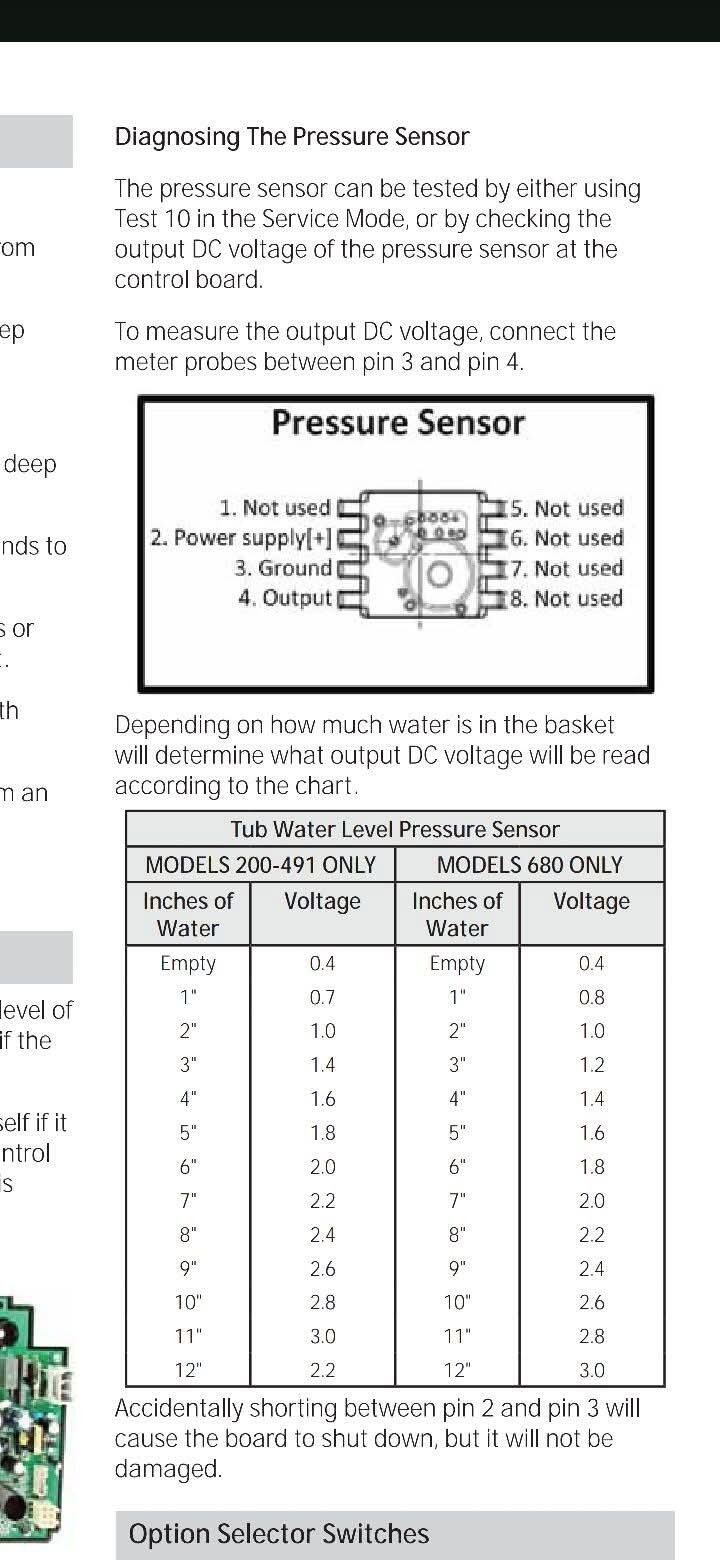

3 of the 8 pins are used to provide voltage in, ground, and voltage out to the control board. The pins need properly oriented to the control board to work properly after desoldering the old sensor.

Specs: PIEZORESISTIVE SENSOR, GAGE, 0.87PSI MAX, 2.5%, 0.5-4.5V, SQUARE, THROUGH HOLE MOUNT

Do I need to solder this sensor?

Yes - desolder the old sensor and solder in this through-hole sensor with its pins properly oriented to the control board. Check afterward for bridged or cold solder joints.

Which washers use this sensor?

It is the primary water level sensor on Whirlpool, Maytag and Amana vertical modular washer control boards (Pima Alto label).

How many pins does it use?

3 of its 8 pins are used - voltage in, ground, and voltage out to the control board.

What are the specs?

Piezoresistive gage sensor - 0.87 PSI max; 2.5%; 0.5-4.5V; square body; through-hole mount.

Is a bulk pack available?

Yes - a 10-unit pack (ADP51B62M02-10pk) is offered alongside the single sensor. The 10-pack is the largest pack size.

After installing the sensor, my washer drains nonstop. What's wrong?

The board may still be in flood-control mode from before the repair. Press and hold Cancel for 10 seconds to reset it. Still draining? Check the pressure hose, connector and solder joints.

My washer still overfills or goes into flood mode after the repair. What else should I check?

Check the pressure hose and the small air chamber on the side of the tub. If that air path is blocked, kinked, leaking or holding water, the washer can flood or fail to fill.

Can I replace the pressure sensor on a GE front-load washer board?

No - on most GE front-load washers the pressure sensor is built into the main control board, so the usual fix is replacing the whole board. Check the pressure hose first.

5 stars: 24 (92%)
4 stars: 1 (4%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 1 (4%)

I do these alot

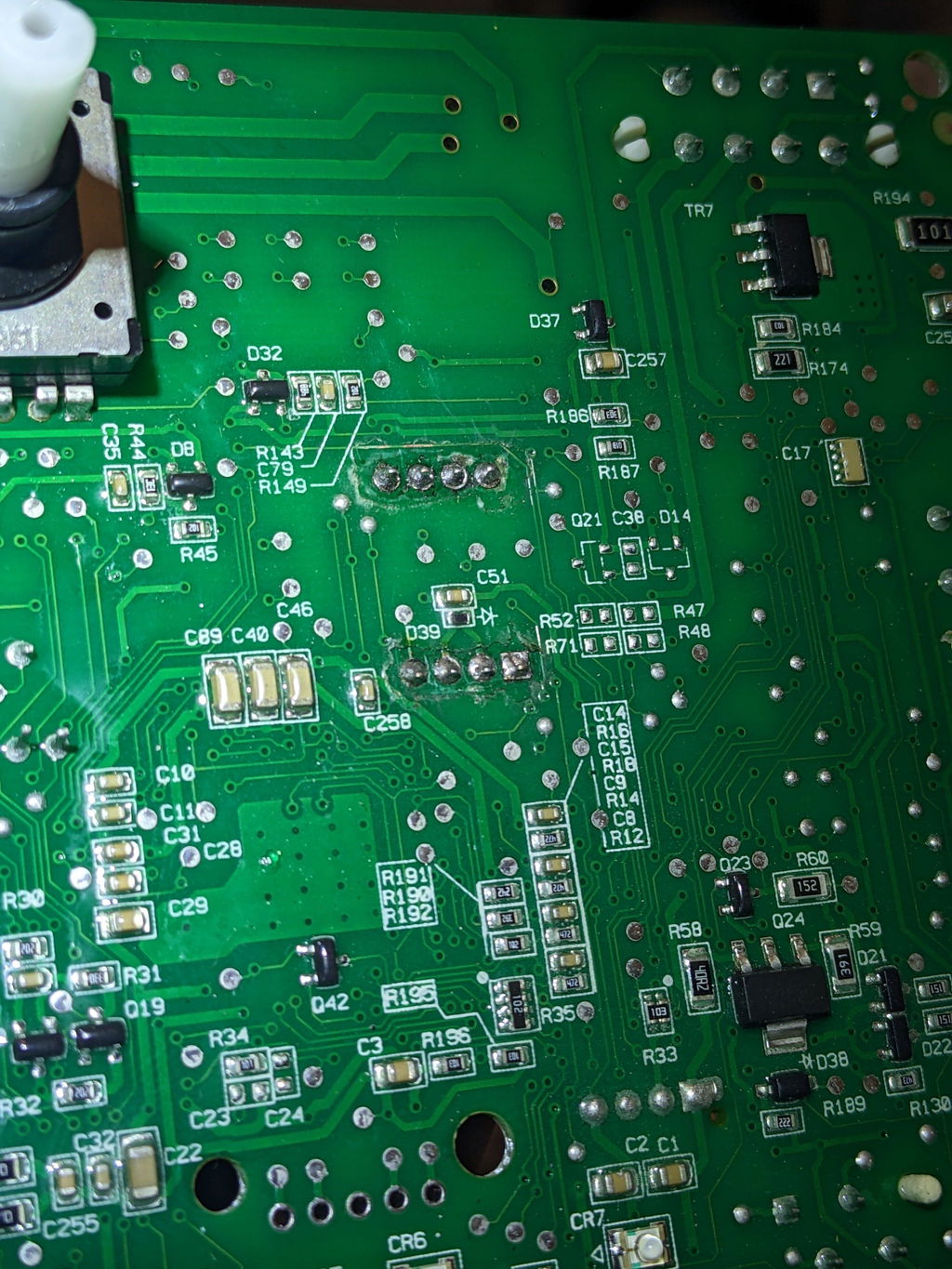

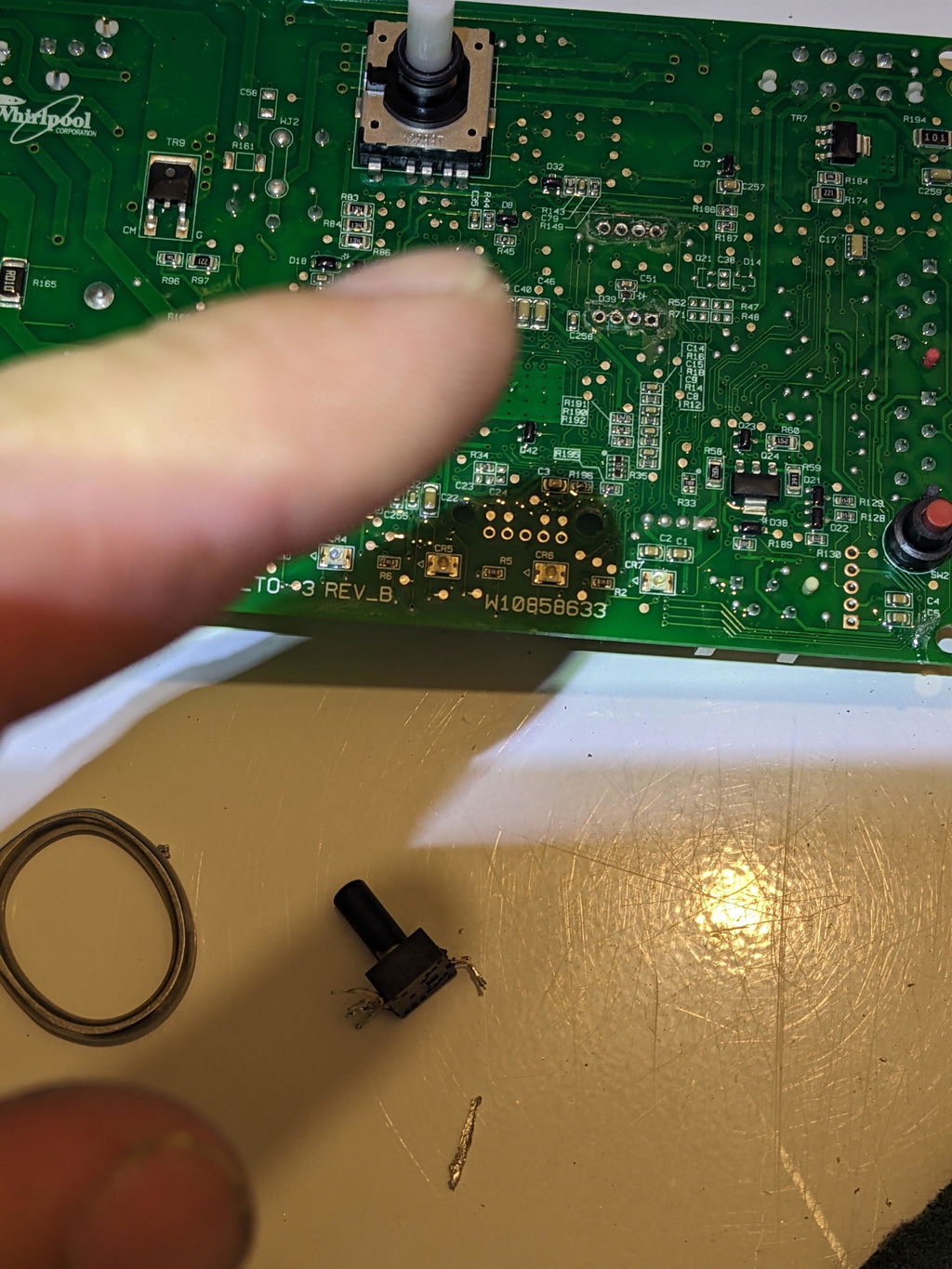

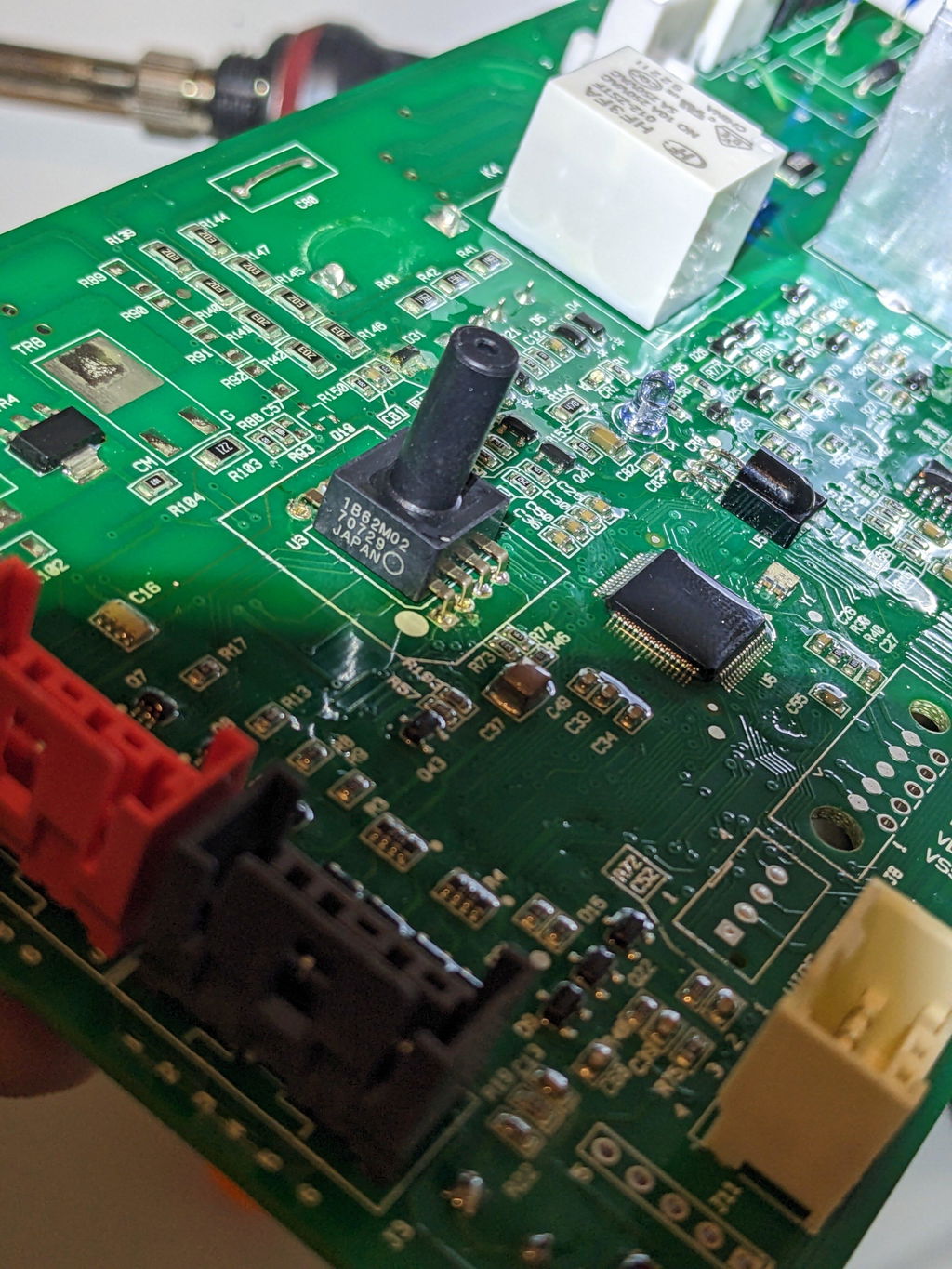

It works on Maytag, Whirlpool, GE, Amana. Just make sure to solder it to the correct side. See pictures. I like to solder with 60/40 rosin core solder ( it's smooth and won't crack later like lead free solder that we see alot these days.Thanks Ben. God Bless you brother.

Ordered parts for washer control board

Excellent to do with business with fast shipping got product on time products excellent

Best price I could find

Life Saver!

Life Saver!

Pressure sensors

So far 100% successful!

Awesome

These are great to fix the boards with the continuous drain

ADP51B62M02-10pk Piezoresistive Sensor for Washing Machine Control Board - 10 UNITS

Great product

Great product

Order was never received.

Order was never received

Work great

Work great They are a game changer.

Thanks Ben!

Great Product

ADP51B62M02-10pk Piezoresistive Sensor for Washing Machine Control Board - 10 UNITS

WORKS GREAT

90%

Excelente producto, pero cada vez que compro un lote de sensores de 10 uno viene dañado

ADP51B62M02-10pk Piezoresistive Sensor for Washing Machine Control Board - 10 UNITS

Jose

Thank you for fast shipping

ADP51B62M02-10pk

Awesome job sourcing these. Have made many people happy with this product.

Fantastic fix for short $$.

This little sensor is a life saver.
If you have soldering skills, this will save you allot of money.
Fixes the constant drain pump issue.

Awesome experience

Senors work great

and Great Customer Service!

wpl pressure sensor fix

we've had great results with the sensors thanks

Good service

Quick service

Repaired!!

I’ve had multiple customers need these for a constant drain error and I repaired their boards for a same day repair at a fraction of the replacement cost. Happy customer and a repaired machine!! Excellent product!

ADP51B62M02-10pk Piezoresistive Sensor for Washing Machine Control Board - 10 UNITS

sensors

work great no problems
