W10324651-BA WHIRLPOOL ALL-METAL WASHING MACHINE DRUM MOUNTING HUB (V2)

Save 51%

Price:
Sale price$24.99 Regular price$50.95

Description

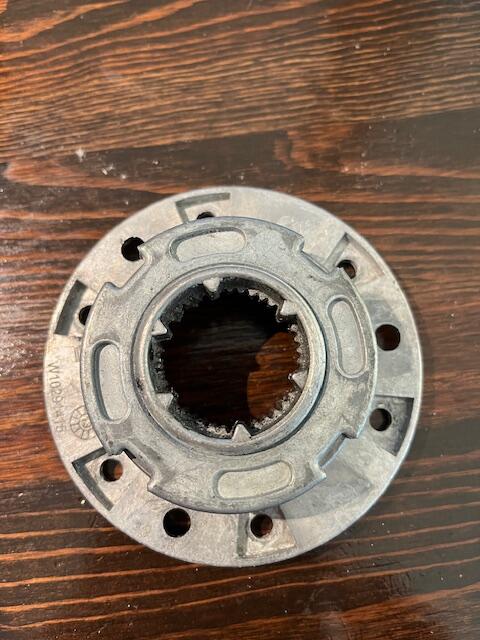

Made of ADC12 and zinc alloy, these hubs are a massive upgrade from the traditional Whirlpool washing machine hubs that can strip out when the gear shaft has been compromised and will give an otherwise condemned machine new life. Whirlpool used to utilize these in older-era machines and removed them from factory installation on or around 2014, but continued selling the hubs for legacy models. Unbeknownst to most technicians, this hub would be forward-compatible with any unit that utilizes W10528947 hubs.

Version 2:

Due to selling so many of these hubs, we've created a major revision from the factory that produced the hubs for us. We were the 1st company to create an aftermarket version which many companies copied.

The new V2 hub has:

  • Additional tangs on the hub for better retention of the drive block
  • Revised / Thicker drive block for better tightening onto drive shaft
  • Deeper splines of hub to drive into gearcase for better adhesion to degraded drive shaft systems.

These were all updates/upgrades to the system that we believe improve performance above and beyond competitors, including the Whirlpool OEM solution.

Installation Instructions (MUST CLICK!)

Note that you MUST use blue threadlocker on the tub nut to secure it properly to the drive block. This is not included with the orders as many customers may already have this (locktite, ect). If you do not have any, please consider ordering the 2ml tube which contains enough to properly lock the tub nut, as well as wash bolt into place.

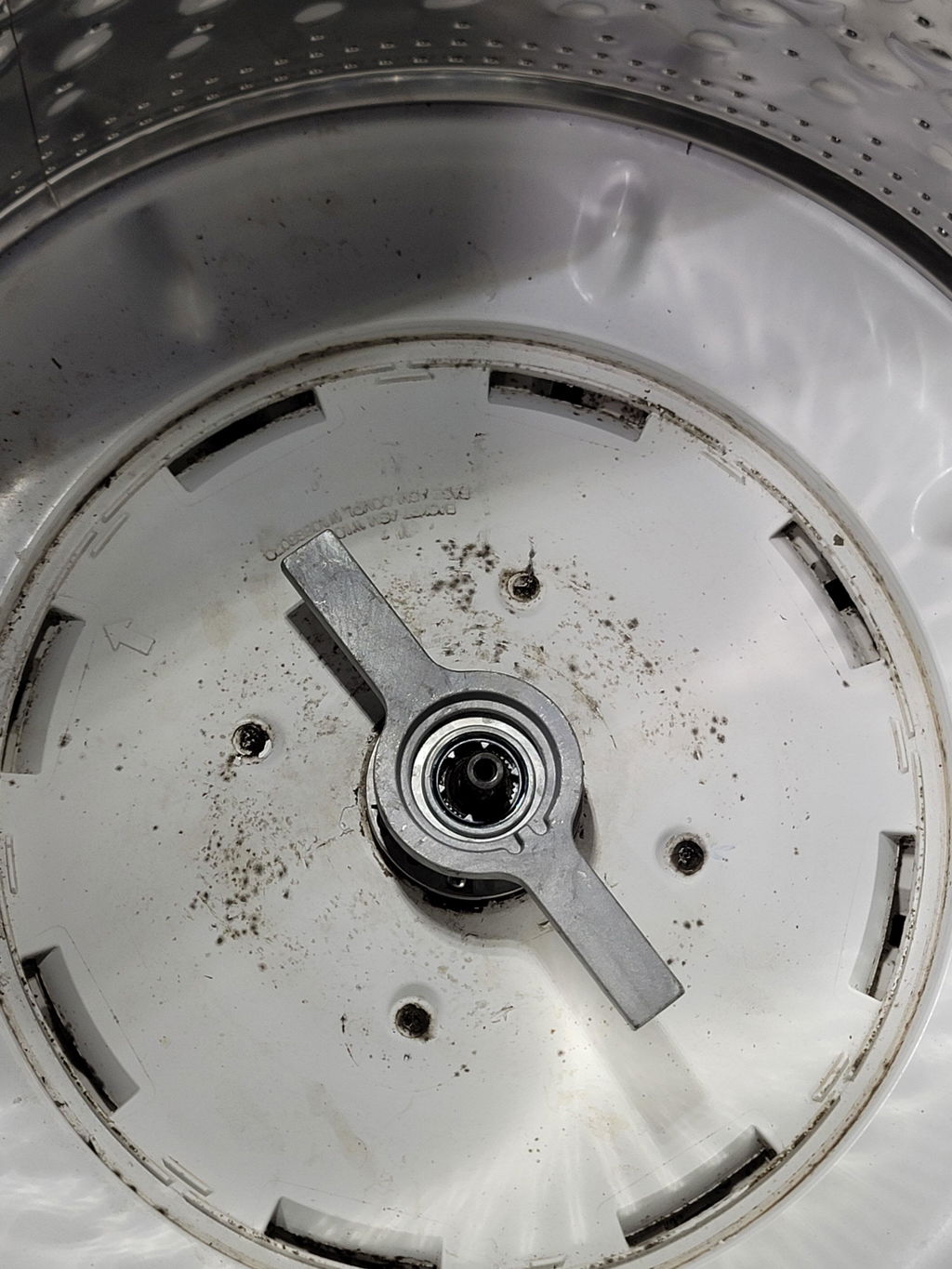

Additionally, a spanner wrench is needed to lock the nut in place. It requires the common TB123A or B wrench, which we do carry.


Threadlocker: https://bens-appliances.com/products/vibratite-blue-threadlocker-1-8ml

Spanner Wrench: https://bens-appliances.com/products/tb123b-spanner-nut-wrench

We know this hub is compatible but not limited to the following models of Whirlpool, Maytag, and Amana Washing Machines:


3LMVWC400YW3 (Maytag)   3LMVWC415FW0 (Maytag)   4GMVWC400YW2 (Maytag)   4KATW4930DW0 (Maytag)   4KATW5415FW0 (Maytag)   4KMVWC330DW0 (Maytag)   4KMVWC400BW0 (Maytag)   4KMVWC405BW0 (Maytag)   4KMVWC410JW0 (Maytag)   4KMVWC415FW0 (Maytag)   4KMVWC420JW0 (Maytag)   4KMVWC425FW0 (Maytag)   4KMVWC430JW0 (Maytag)   4KMVWC440JW0 (Maytag)   4KMVWX505BW0 (Maytag)   4KNTW3100JW0 (Maytag)   4KNTW3200JW0 (Maytag)   4KNTW3300JW0 (Maytag)   4KNTW4630DQ0 (Maytag)   7MMVWC400YW2 (Maytag)   7MMVWC416FW0 (Maytag)   7MMVWC417FW0 (Maytag)   7MMVWC465JW0 (Maytag)   7MMVWC565FW0 (Maytag)   7MMVWC565FW1 (Maytag)   7MMVWH450DW0 (Maytag)   7MMVWH450DW1 (Maytag)   7MMVWX500YW2 (Maytag)   7MMVWX510YW1 (Maytag)   7MMVWX521BW0 (Maytag)    7MMVWX521BW1 (Maytag)   7MMVWX622BW0 (Maytag)   7MMVWX655EW0 (Maytag)   7MMVWX655EW1 (Maytag)   7MMVWX700XL2 (Maytag)   7MMVWX722BG0 (Maytag)   7MMVWX722BG1 (Maytag)   CAW12444XW2 (Maytag)   MVWC360AW0 (Maytag)   MVWC400XW4 (Maytag)   MVWC415EW0 (Maytag)   MVWC415EW1 (Maytag)   MVWC415EW2 (Maytag)   MVWC416FW0 (Maytag)   MVWC416FW1 (Maytag)   MVWC425BW0 (Maytag)   MVWC425BW1 (Maytag)   MVWC450XW4 (Maytag)   MVWC465HW0 (Maytag)   MVWC465HW1 (Maytag)   MVWC465HW2 (Maytag)   MVWC465HW3 (Maytag)   MVWC555DW0 (Maytag)   MVWC555DW1 (Maytag)   MVWC565FW0 (Maytag)   MVWC565FW1 (Maytag)   MVWC565FW2 (Maytag)   MVWP475EW0 (Maytag)   MVWP575GW0 (Maytag)   MVWP575GW1 (Maytag)    MVWP576KW0 (Maytag)   MVWP576KW1 (Maytag)   MVWX500BW0 (Maytag)   MVWX500XL2 (Maytag)   MVWX500XW2 (Maytag)   MVWX550XW2 (Maytag)   MVWX5SPAW0 (Maytag)   MVWX600BW0 (Maytag)   MVWX600XW2 (Maytag)   MVWX655DW0 (Maytag)   MVWX655DW1 (Maytag)   MVWX655DW2 (Maytag)   MVWX700AG0 (Maytag)   MVWX700XL2 (Maytag)   MVWX700XW2 (Maytag)   NTW4519JW0 (Maytag)   NTW4519JW1 (Maytag)   NTW4750BQ0 (Maytag)   NTW4750BQ1 (Maytag)   NTW4750YQ1 (Maytag)   NTW4755EW0 (Maytag)   NTW4755EW1 (Maytag)   2DWTW5500XW1 (Whirlpool)   3LMVWC415FW0 (Whirlpool)   3LMVWC415FW1 (Whirlpool)   3LWTW5550YW2 (Whirlpool)   4GWTW4950YW2 (Whirlpool)   4GWTW5550YW2 (Whirlpool)   4KATW5415FW0 (Whirlpool)   4KMVWC410JW1 (Whirlpool)    4KMVWC415FW0 (Whirlpool)   4KMVWC420JW0 (Whirlpool)   4KMVWC420JW1 (Whirlpool)   4KMVWC425FW0 (Whirlpool)   4KMVWC430JW0 (Whirlpool)   4KMVWC430JW1 (Whirlpool)   4KMVWC440JW0 (Whirlpool)   4KMVWC440JW1 (Whirlpool)   4KNTW3300JW0 (Whirlpool)   4KNTW3300JW1 (Whirlpool)   4KWTW4845FW0 (Whirlpool)   4KWTW4930DQ0 (Whirlpool)   4KWTW5600JW0 (Whirlpool)   4KWTW5600JW1 (Whirlpool)   4KWTW5700JW0 (Whirlpool)   4KWTW5700JW1 (Whirlpool)   4KWTW5800JW0 (Whirlpool)   4KWTW5800JW1 (Whirlpool)   4KWTW5900JW0 (Whirlpool)   4KWTW5900JW1 (Whirlpool)   7MWTW1950YW2 (Whirlpool)   7MWTW4915EW0 (Whirlpool)   7MWTW4915EW1 (Whirlpool)   7MWTW4925EW0 (Whirlpool)   7MWTW4925EW1 (Whirlpool)   7MWTW5500XW2 (Whirlpool)   7MWTW5521BW0 (Whirlpool)   7MWTW5521BW1 (Whirlpool)   7MWTW5550YW2 (Whirlpool)   7MWTW5622BW0 (Whirlpool)    7MWTW5622BW1 (Whirlpool)   7MWTW5700YW2 (Whirlpool)   7MWTW5722BC0 (Whirlpool)   8TWTW4955JW0 (Whirlpool)   8TWTW4955JW1 (Whirlpool)   8TWTW6000JW0 (Whirlpool)   8TWTW6000JW1 (Whirlpool)   CAW11544EW1 (Whirlpool)   CAW11544EW2 (Whirlpool)   CAW12444BW0 (Whirlpool)   CAW12444DW1 (Whirlpool)   CAW38125HW0 (Whirlpool)   CAW38125HW1 (Whirlpool)   CAW42114GW0 (Whirlpool)   CAW42114GW1 (Whirlpool)   CAW42114GW2 (Whirlpool)   ITW4880HW0 (Whirlpool)   ITW4880HW1 (Whirlpool)   ITW4880HW2 (Whirlpool)   ITW4880HW3 (Whirlpool)   ITW4971DQ0 (Whirlpool)   ITW4971EW0 (Whirlpool)   ITW4971EW1 (Whirlpool)   MVWC465HW4 (Whirlpool)   MVWC565FW3 (Whirlpool)   NTW4519JW2 (Whirlpool)   WTW4655JW0 (Whirlpool)   WTW4655JW1 (Whirlpool)   WTW4655JW2 (Whirlpool)   WTW4850HW0 (Whirlpool)    WTW4850HW1 (Whirlpool)   WTW4850HW2 (Whirlpool)   WTW4850HW3 (Whirlpool)   WTW4855HW0 (Whirlpool)   WTW4855HW1 (Whirlpool)   WTW4855HW2 (Whirlpool)   WTW4855HW3 (Whirlpool)   WTW4900AW0 (Whirlpool)   WTW4900BW0 (Whirlpool)   WTW4900BW1 (Whirlpool)   WTW4915EW0 (Whirlpool)   WTW4915EW1 (Whirlpool)   WTW4915EW2 (Whirlpool)   WTW4950HW0 (Whirlpool)   WTW4950HW1 (Whirlpool)   WTW4950HW2 (Whirlpool)   WTW4950HW3 (Whirlpool)   WTW4950XW3 (Whirlpool)   WTW4955HW0 (Whirlpool)   WTW4955HW1 (Whirlpool)   WTW4955HW2 (Whirlpool)   WTW4955HW3 (Whirlpool)   WTW5000DW0 (Whirlpool)   WTW5000DW1 (Whirlpool)   WTW5000DW2 (Whirlpool)   WTW5000DW3 (Whirlpool)   WTW5005KW0 (Whirlpool)   WTW5500BW0 (Whirlpool)   WTW5500XW3 (Whirlpool)   WTW5550XW3 (Whirlpool)    WTW5600XW3 (Whirlpool)   WTW5610XW3 (Whirlpool)   WTW5640XW3 (Whirlpool)   WTW5700AC0 (Whirlpool)   WTW5700XL3 (Whirlpool)   WTW5700XW3 (Whirlpool)   WTW5800BC0 (Whirlpool)   WTW5800BW0 (Whirlpool)   WTW5810BW0 (Whirlpool)   WTW5840BC0 (Whirlpool)   WTW5840BW0 (Whirlpool)




Customer Reviews

Based on 308 reviews
82%
(253)
4%
(11)
6%
(17)
1%
(3)
8%
(24)
S
Some Guy in North Carolina
This is the way

This fixed what we thought was going to be the suspension rods. But we decided to check the hub first, since we didn't need to remove the machine. Smart money says to go old-school metal. FIx it Forever

R
Richard Reis

Part works great so far!

M
Mark Huber
Maytag Washing Machine - All Metal Mounting Hub

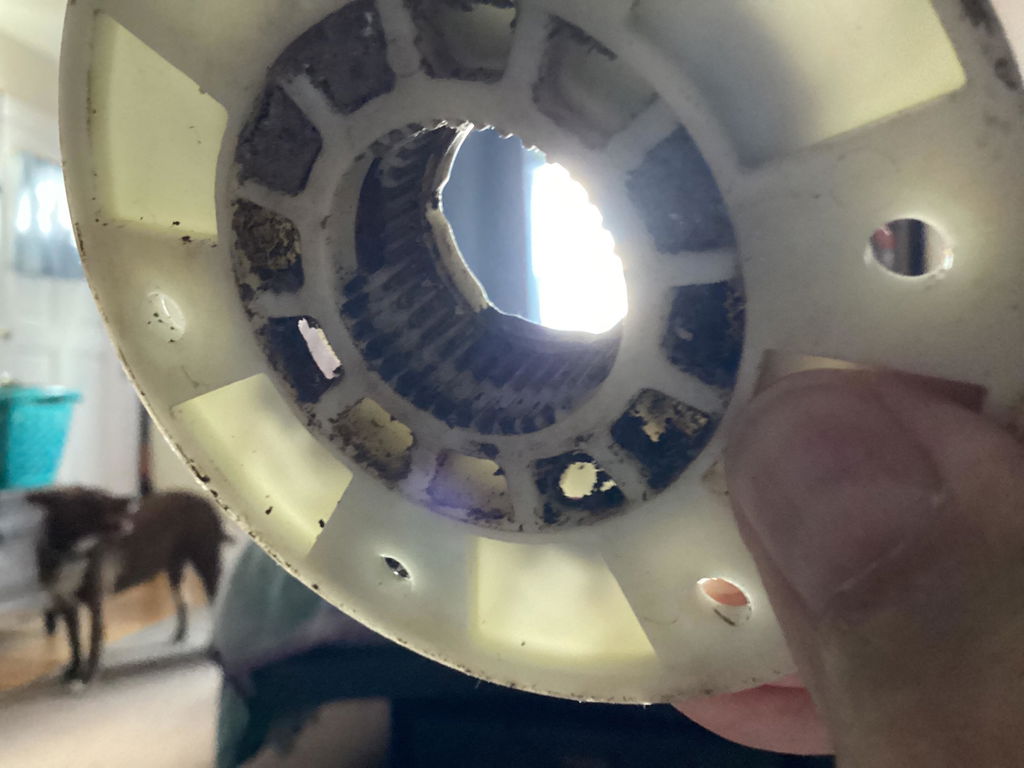

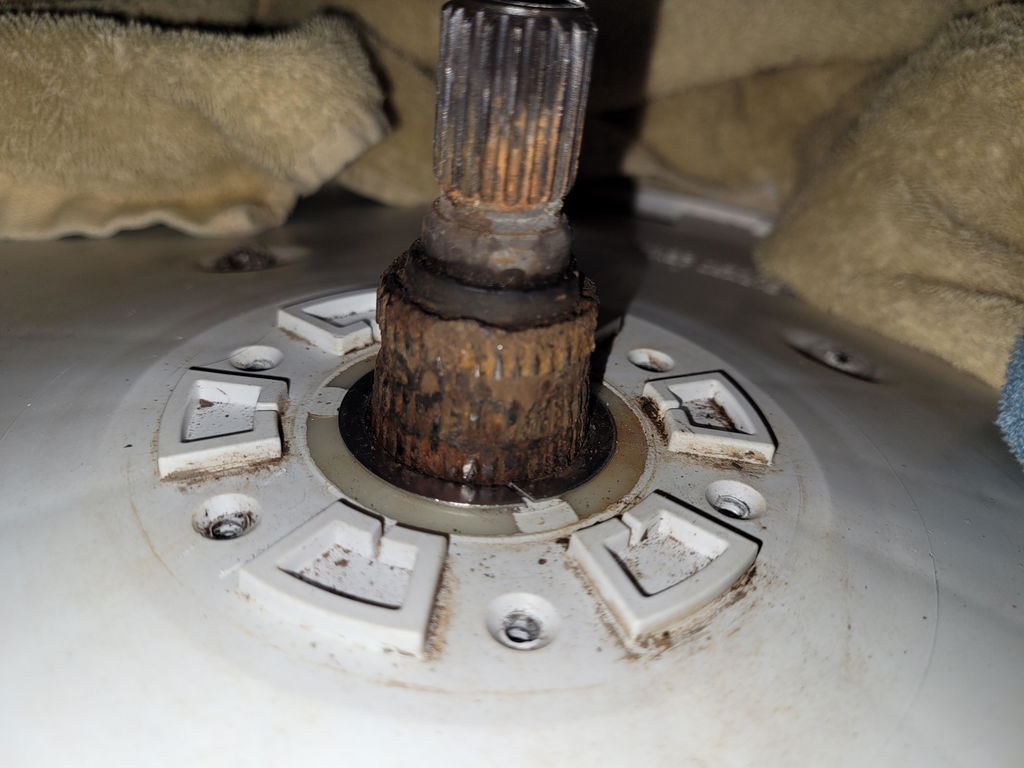

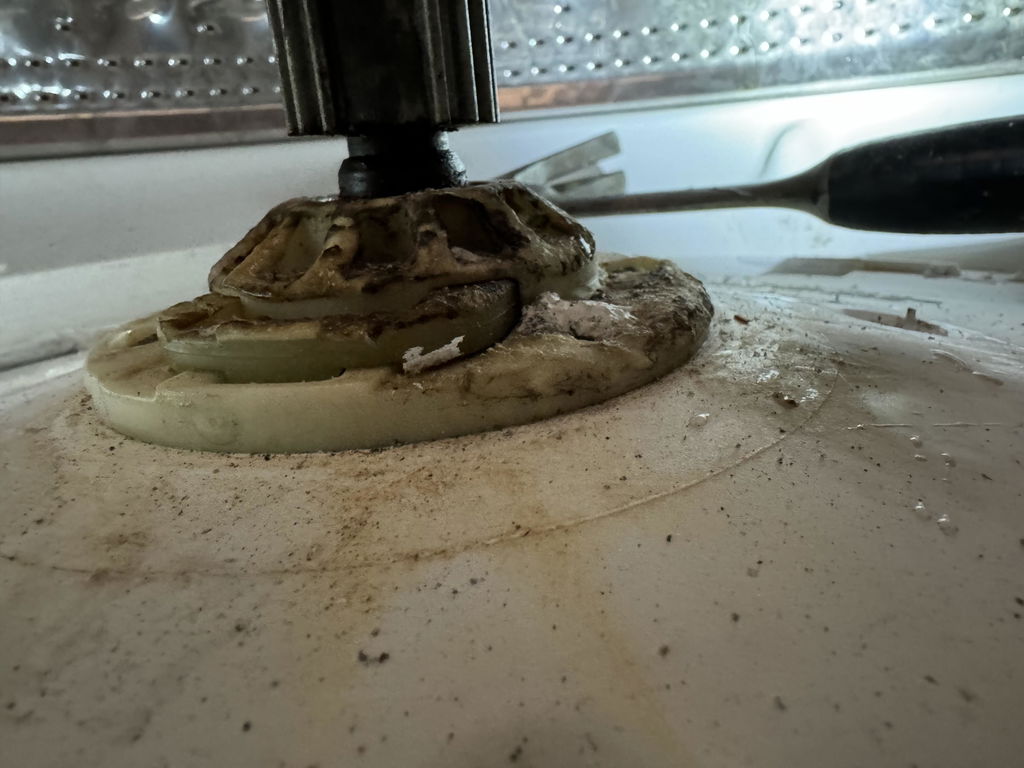

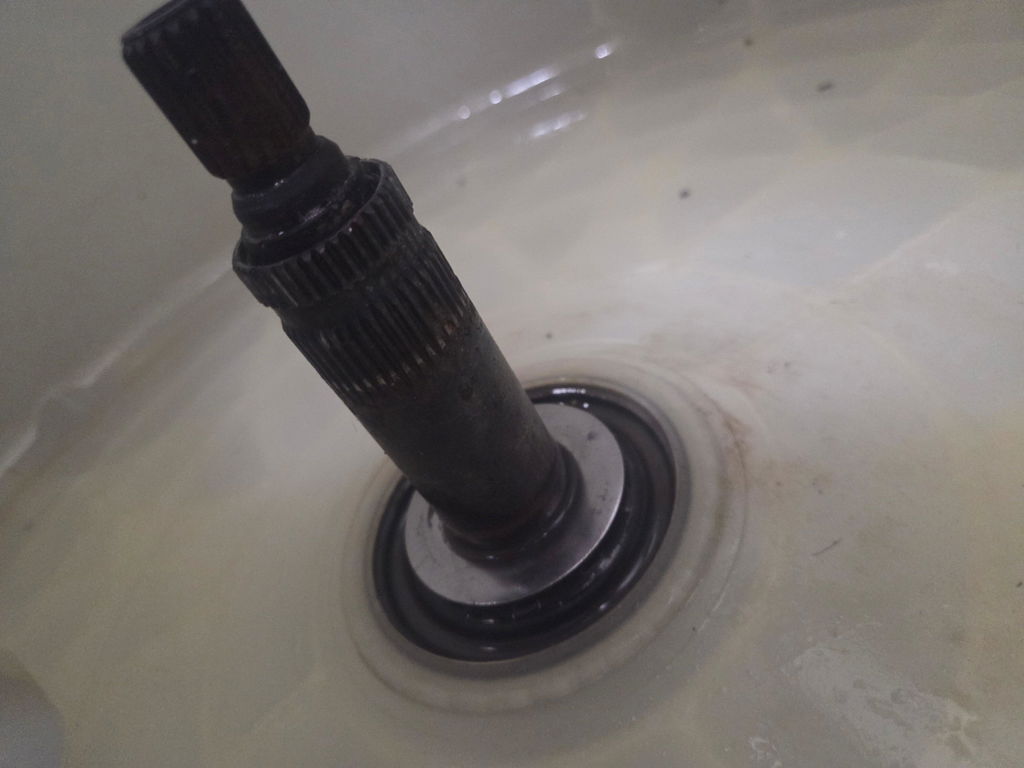

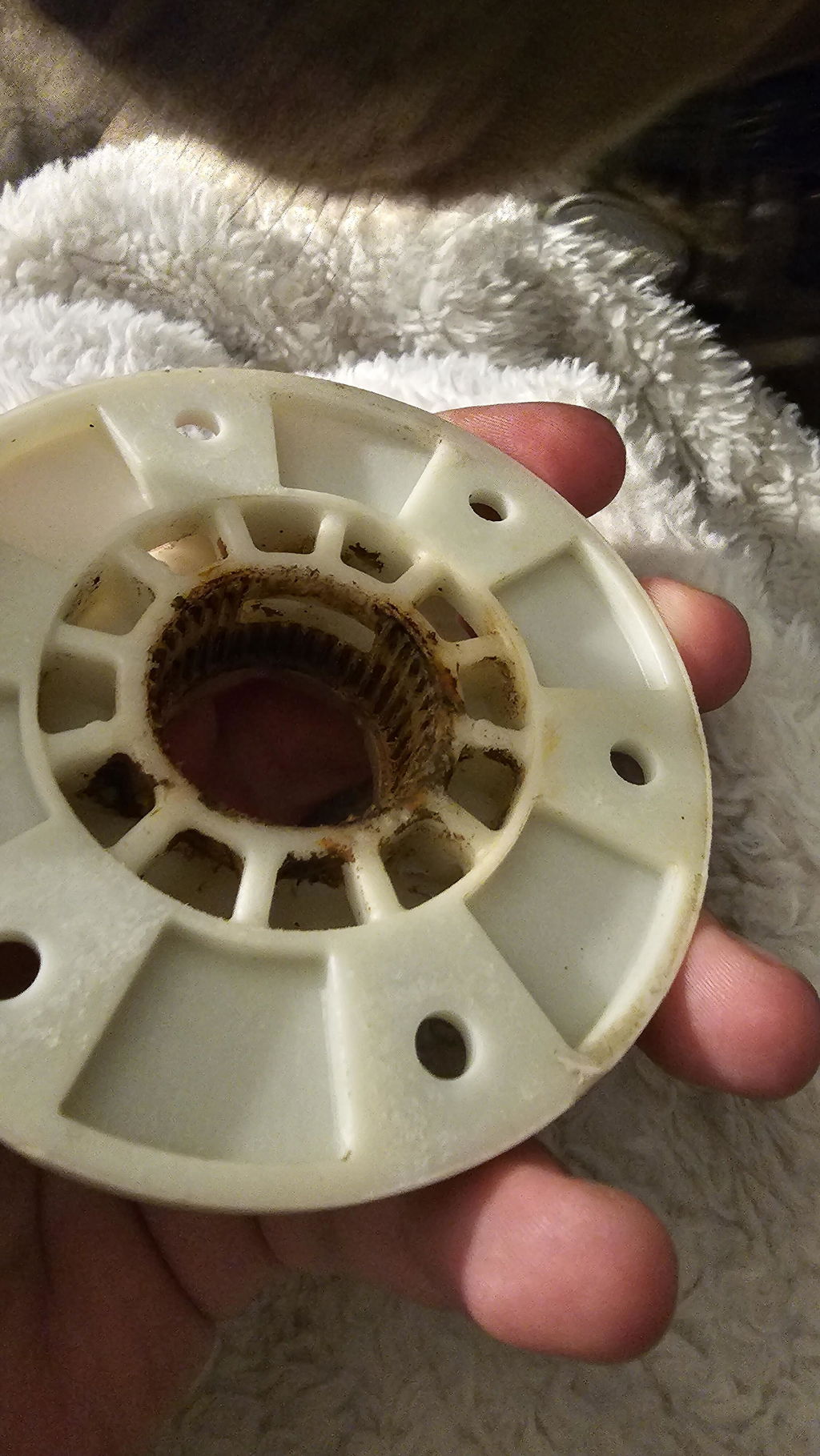

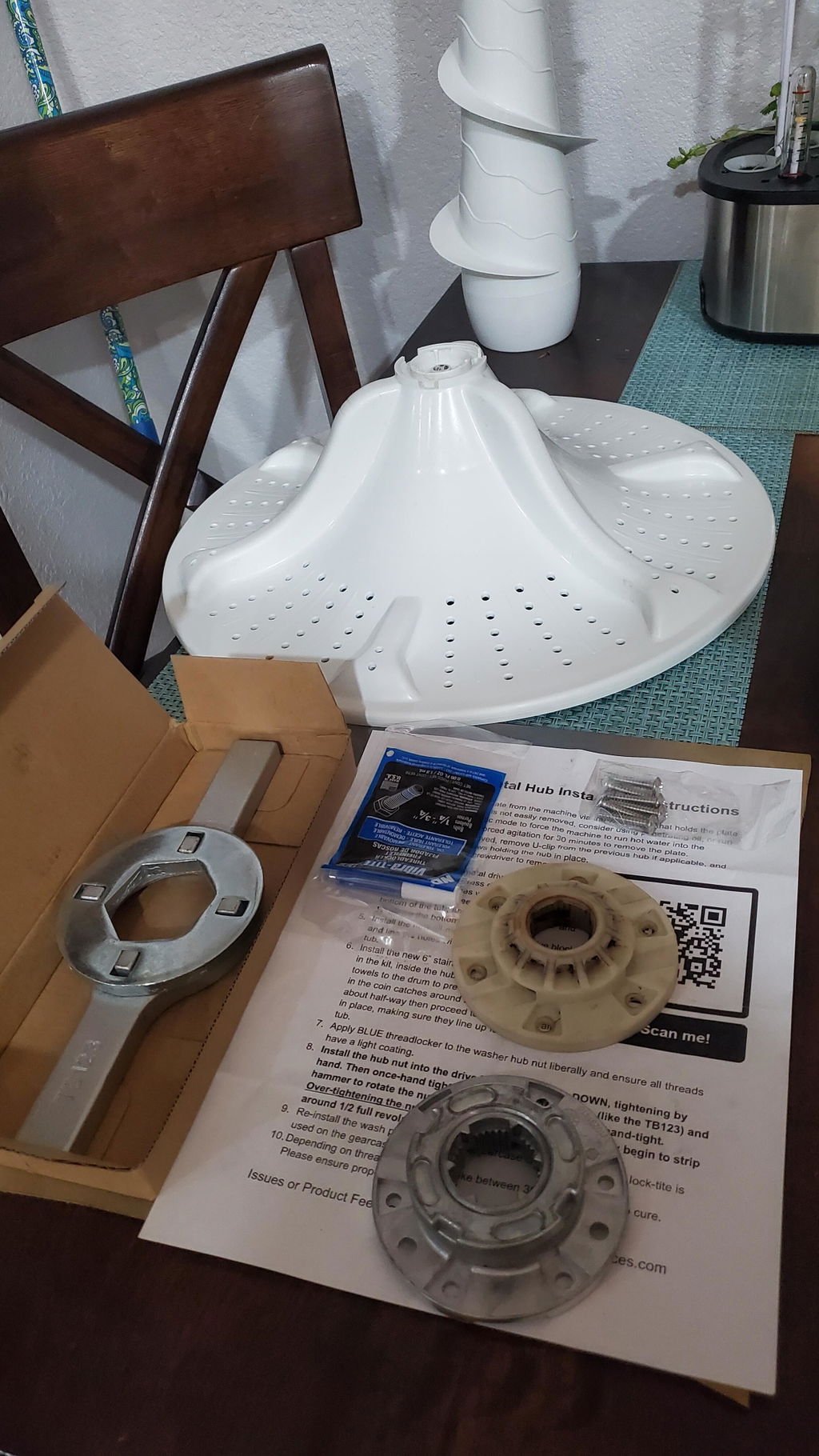

After 6 years the nylon (?) hub stripped out on our Maytag washing machine. The splines on the transmission that engage the hub were somewhat compromised. I replaced the hub with another nylon hub and between the worn splines and actual wear on the drum itself, I knew it wouldn't last long. I was getting ready to order a new transmission and drum when I happened to run across Ben's video on the metal hub. I ordered the metal hub and shim and it works perfectly now. Saved me hundreds of dollars!!! Ben, you are a genius!!!! If you have a newer washing machine and find the nylon hub splines stripped and transmission splines worn, order one of these kits - you'll be glad you did! Mark Huber - Parma, Ohio

N
Nicholas Sachs
Amazing Find!!

I was lucky to fun Ben's YouTube video and decided to purchase the part. My washer is barely 5 years old and stopped wringing out the clothes. Installation was pretty easy and start to finish was only an hour (including some time to keep reviewing the YouTube video). The results are amazing!! It seems to be working better than new. I highly recommend this part and Ben's info.

E
Edwin Julian
A little disappointed

I wanted to be very positive about the experience, but when the parts did not exactly fit and I requested a return, just silence. Not exactly the way to appreciate your customers,.... then you ask me to offer feedback!
