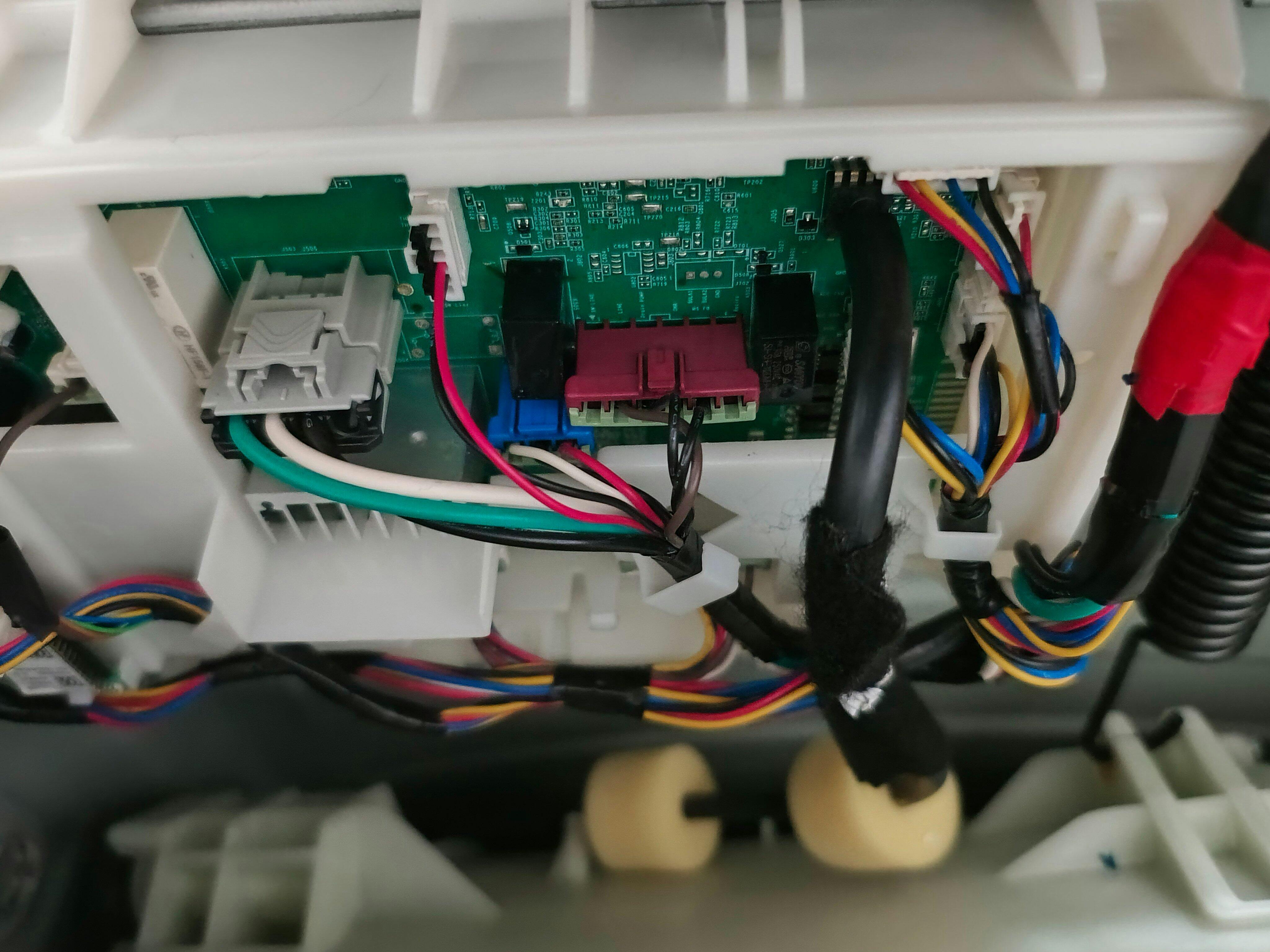

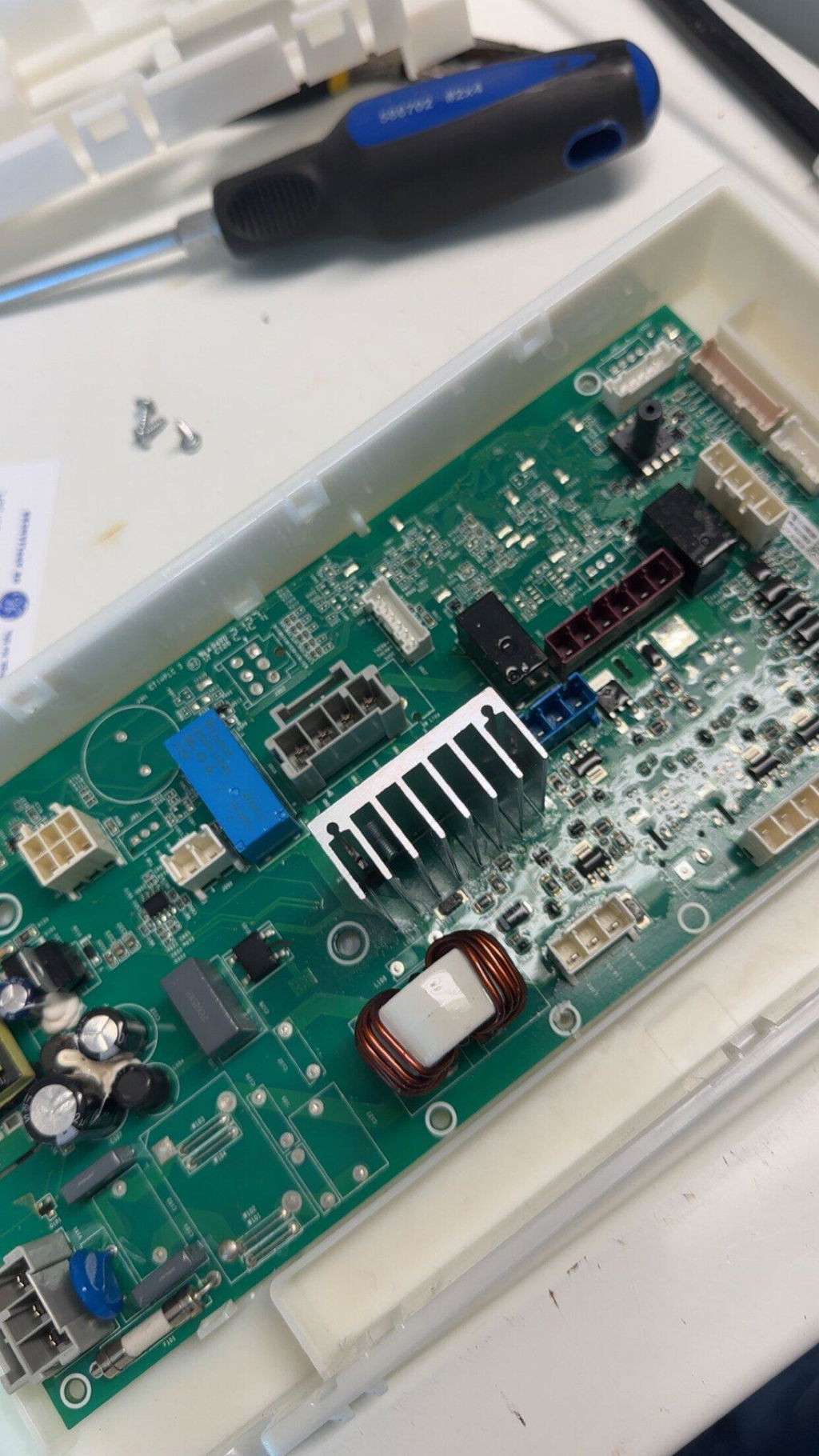

WH22X38697 Genuine GE Washer Main Control Board

• Genuine OEM GE replacement part
• Main control board for GE GFW510S and GFW550S front load washing machines
• Replaces eight earlier GE board numbers including WH22X37837 and WH22X36638
• Personality selection instructions are provided for initial install or to change the setting
• May need programming to match your specific GE model
• Check that the drain pump works before installing since a failed pump can damage a new board

Is this the same as the WH22X37840 board?

No - WH22X37840 is a different revision for other GE washers, and its power pigtail and connectors don't match this board. Check your full model number before ordering.

Is this the board that makes the drum spin?

No - the drum is driven by the separate inverter (motor control) board, such as WH22X38837 on the GFW550SSN5WW. This main board powers the console and controls the washer's functions.

How do I know the main control board is the problem?

No display, no diagnostics and 120V reaching the board but nowhere else point to the main board. The door lock, pressure sensor or wiring harness can cause similar symptoms, so rule those out.

My washer won't drain. Should I replace the pump or this board?

Start with the drain pump - it's usually the first part to check when the washer won't drain fully. If the pump and drain system are clear and it still won't drain, the board is next.

Is there anything to check before installing?

Yes - make sure the drain pump works and check the wiring harness and door lock for shorts. A failed pump or shorted part can burn out a new board as soon as it's powered.

Does this replace part WH22X37837?

Yes - it's the updated replacement for WH22X37837 and also replaces WH22X36638.

Do I need to program this board?

It may need to be programmed. Personality selection instructions are provided for the initial install or to change the setting; some board versions detect the settings automatically.

Is this a genuine OEM GE part?

Yes - this is a genuine OEM GE part.

How do I check if it fits my washer?

Type your full model number into the fit checker on this page or find it in the compatible model list. Not listed? Contact us with your model number.

Will this fit a GFW550SSN?

Yes - the GFW550SSN is listed as a model that uses part WH22X38697.

Will this fit a GFW350SSY?

Yes - the GFW350SSY is listed as a model that uses part WH22X38697.
