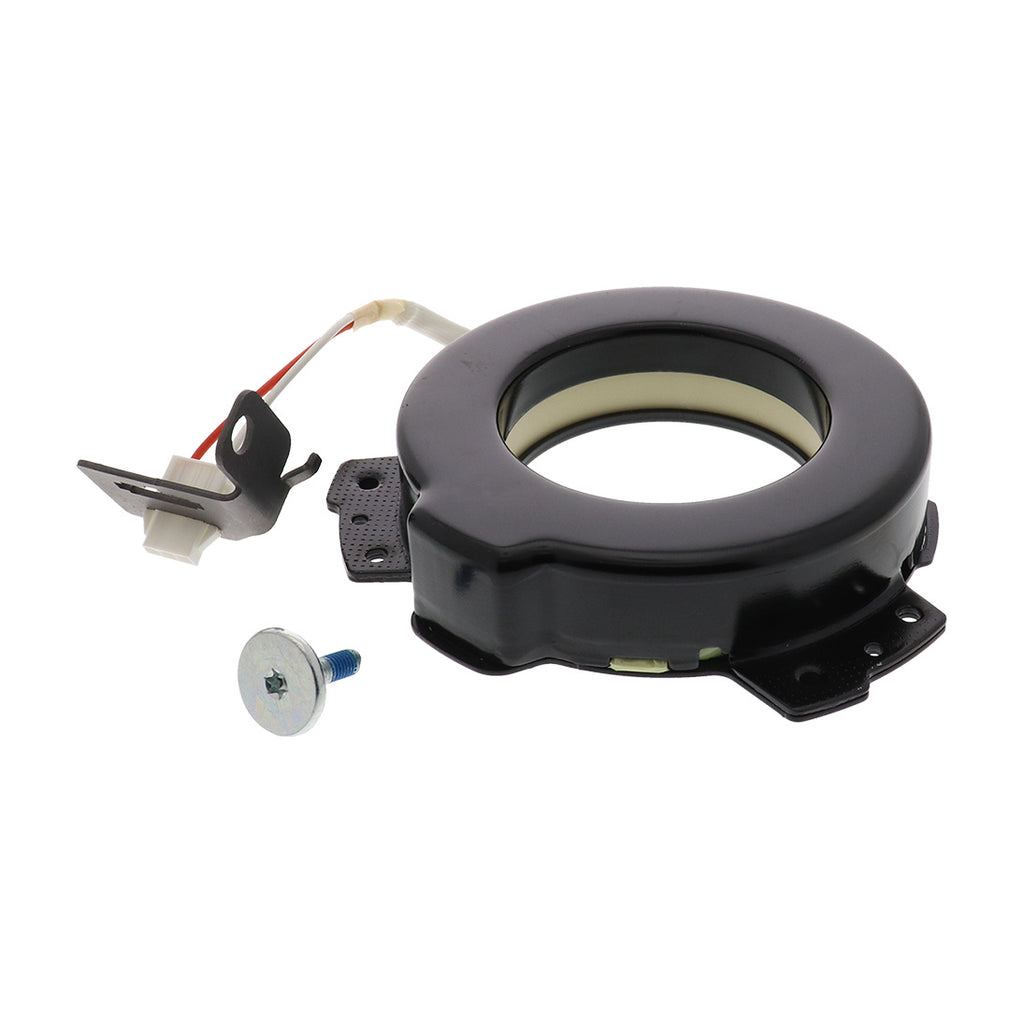

W10754448 Electromagnetic Clutch / Shift Assembly - front view

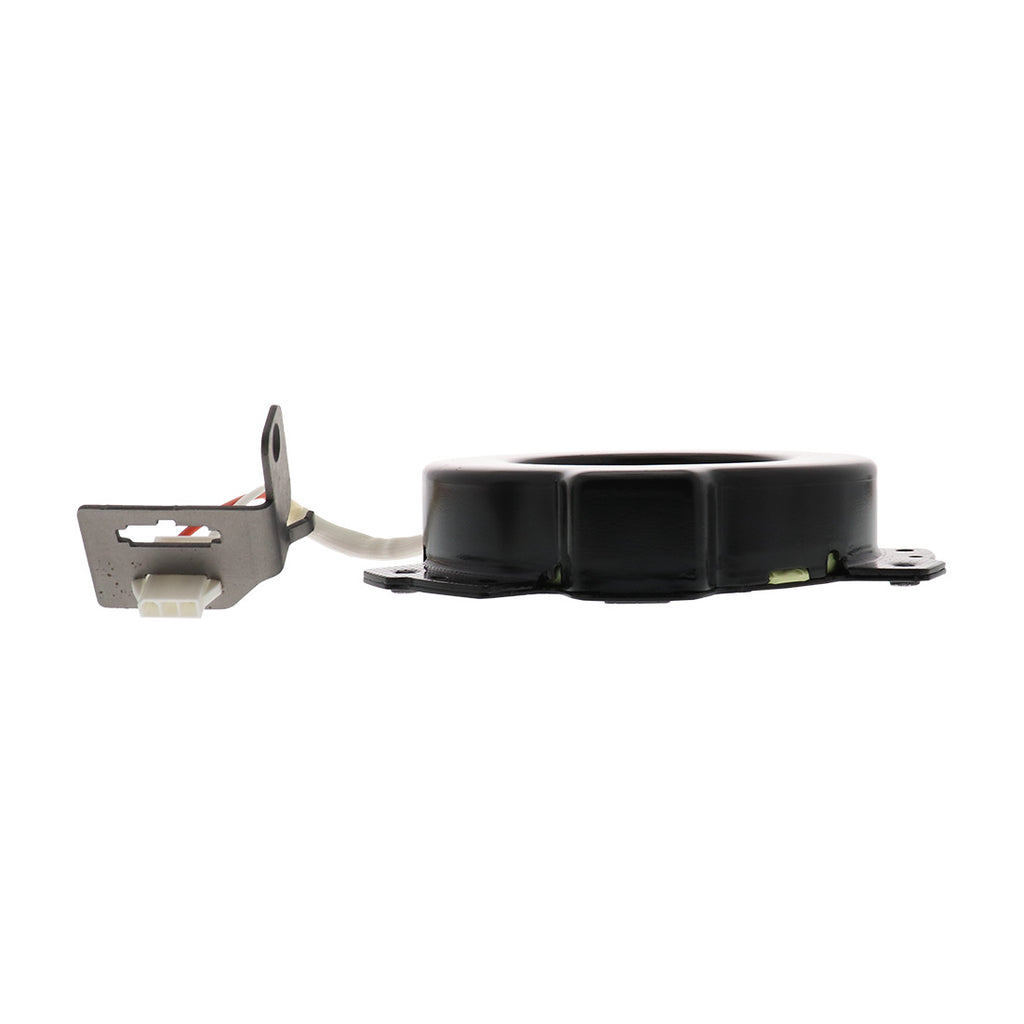

W10754448 Electromagnetic Clutch / Shift Assembly - side view

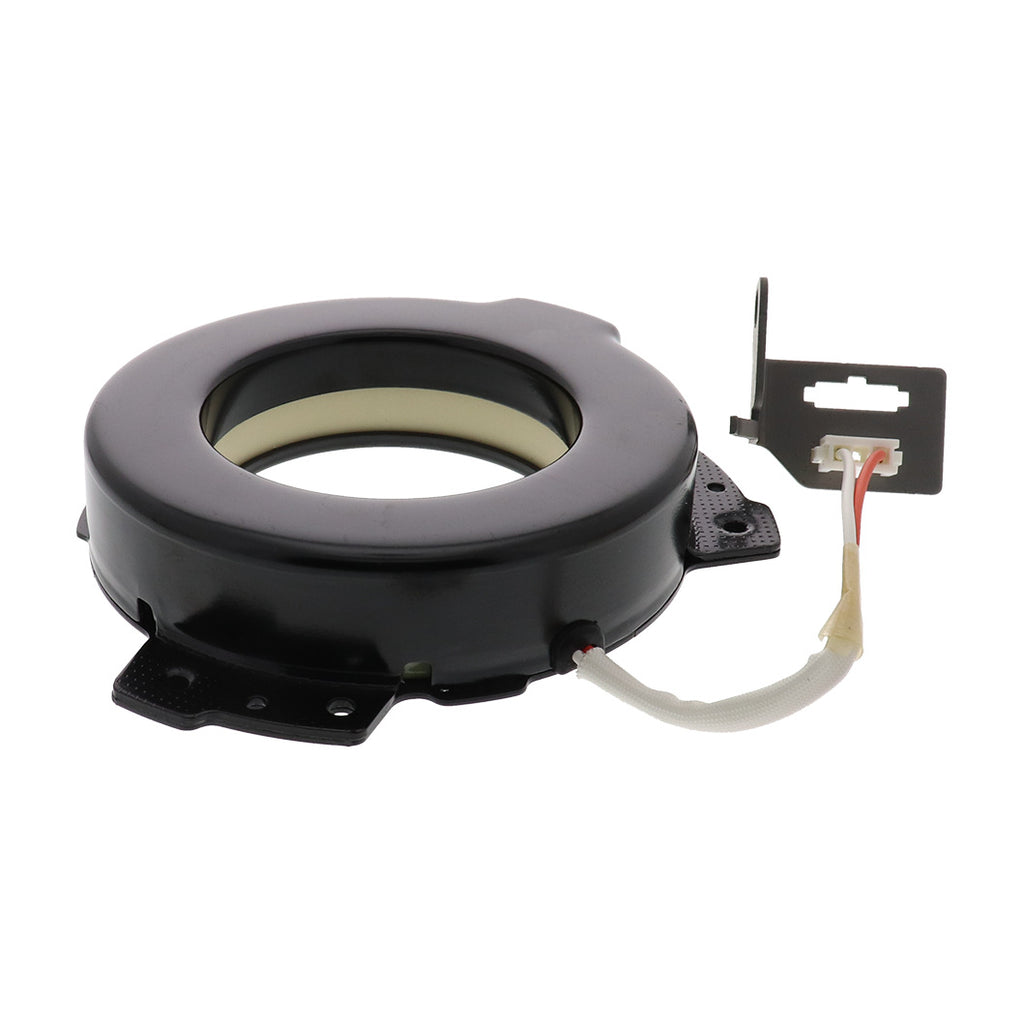

W10754448 Electromagnetic Clutch / Shift Assembly - back view

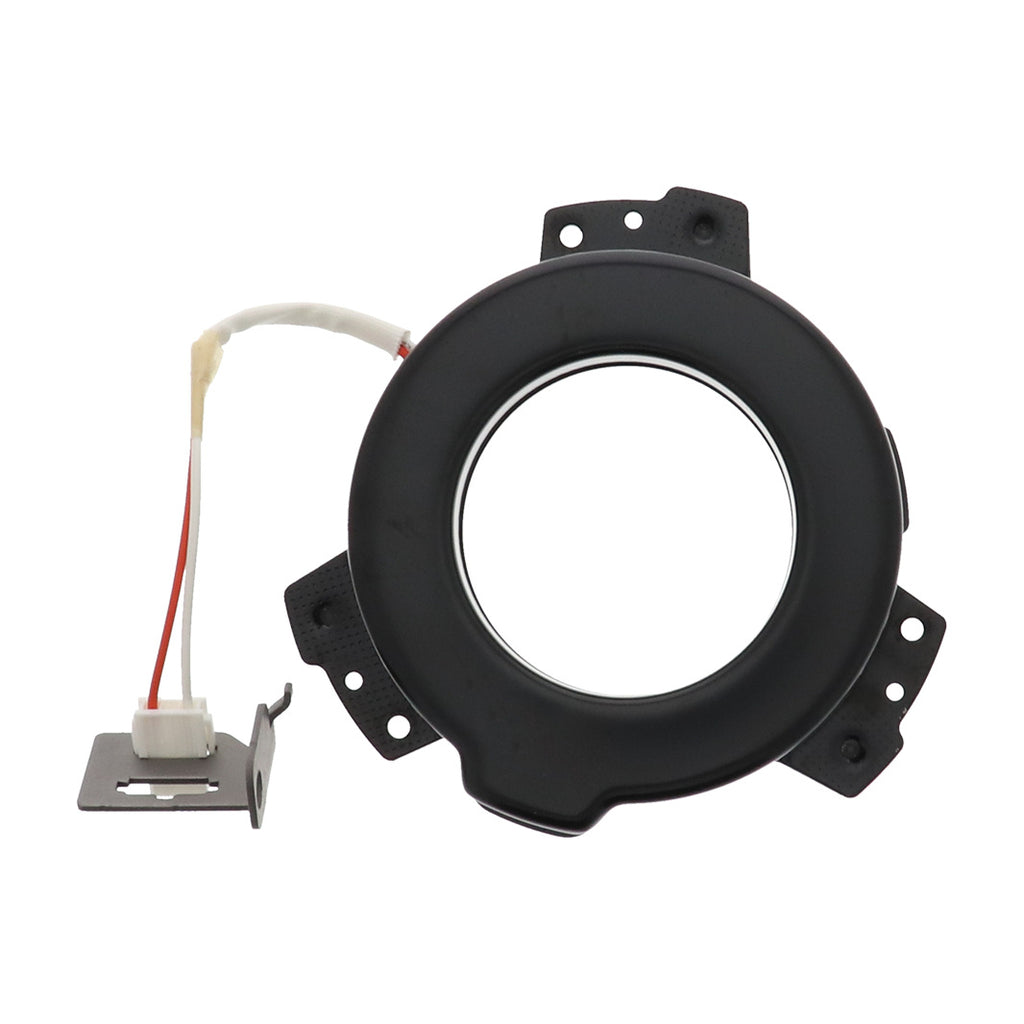

W10754448 Electromagnetic Clutch / Shift Assembly - top view

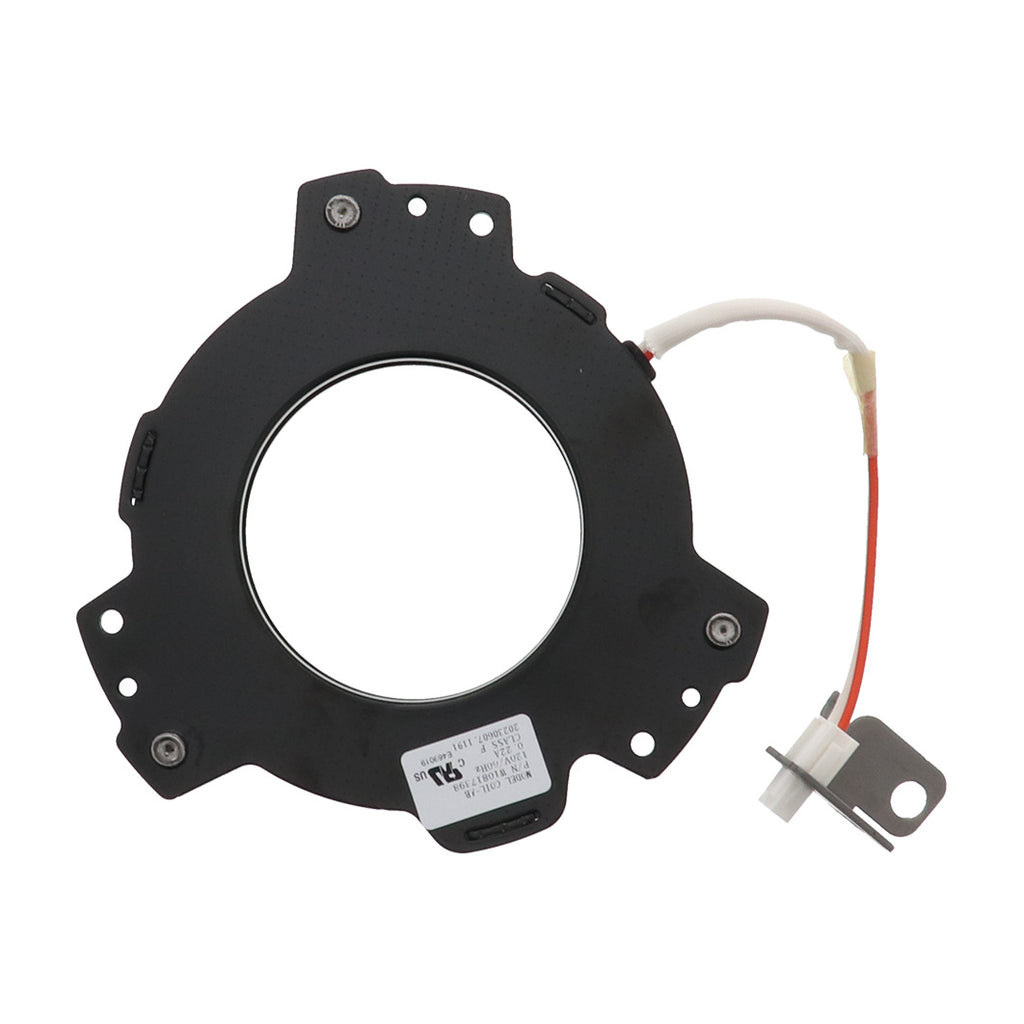

W10754448 Electromagnetic Clutch / Shift Assembly - bottom view
Roll over image to zoom in Click on image to zoom
W10754448 Electromagnetic Clutch / Shift Assembly
W10754448 Electromagnetic Clutch / Shift Assembly
W10754448 Electromagnetic Clutch / Shift Assembly
W10754448 Electromagnetic Clutch / Shift Assembly - front view
W10754448 Electromagnetic Clutch / Shift Assembly - side view
W10754448 Electromagnetic Clutch / Shift Assembly - back view
W10754448 Electromagnetic Clutch / Shift Assembly - top view
W10754448 Electromagnetic Clutch / Shift Assembly - bottom view

W10754448 Electromagnetic Clutch / Shift Assembly

Choice Parts
Price:
$33.99

At a Glance

Will it fit my model?

Most-searched compatible models: WTW8500DC, MVW7230HW, MVW7232HW, MVWB765FW, WTW7500GW, MVWB835DW, WTW7500GC, WTW8500DW, MVWB765FC, MVW7230HC

Checks your model against 103 compatible models. The list is also in the description below.

Key features
  • Electromagnetic clutch for Whirlpool Kenmore Maytag and Crosley large capacity top load washers
  • Designed for direct drive rotor and stator washers running on 120V 60Hz power
  • Helps resolve F7E1 error codes and grinding noises that keep the washer from spinning
  • Includes the clutch plus a new stator bolt with threadlocker and a wire harness cluster bracket
  • Aftermarket part developed by Choice Parts Mfg. or Exact Replacement Parts - not the OEM version
Fitment & FAQ

What problems does this fix?

It fixes error codes such as F7E1 and F7E5, and grinding or squealing from the shifting action that can stop the washer from spinning.

Is anything needed after installation?

Yes - the washer needs to be recalibrated after this part is installed. Replacing the W10734521 slider at the same time is highly suggested.

What is included in the kit?

The clutch assembly, a new stator bolt with threadlocker, and a wire harness cluster bracket. Adding extra threadlocker is suggested for safety.

Does this replace part W10447973 or W10817398?

Yes - it replaces both W10447973 and W10817398.

Is this an OEM part?

No - it is made by Choice Parts Mfg. or Exact Replacement Parts and is not the OEM version.

I replaced this and the slider but still get F7E5 or noise. What next?

The fault is likely elsewhere in the drive system. Check the drive belt for slipping or stretching, the motor, the rotor for wear or shaft play, and the main control board.

Is it normal for the new clutch to leak grease?

No - fast grease leaks aren't common. They can point to improper seating or alignment during installation, a defective part, or stress from a worn hub, bearing or transmission.

How do I check if it fits my washer?

Type your full model number into the fit checker on this page or find it in the compatible model list. Not listed? Contact us with your model number.

Will this fit a WTW8500DC?

Yes - the WTW8500DC is listed as a model that uses part W10754448.

Will this fit a MVW7230HW?

Yes - the MVW7230HW is listed as a model that uses part W10754448.

Description

120V, 60Hz, electro-magnetic clutch assembly. Fits Whirlpool, Kenmore, Maytag and Crosley large capacity top load washers using the "Direct Drive" rotor/stator system.

This fixes error codes such as F7E1 as well as grinding noises that will cause the washing machine to fail to spin.

Kit includes clutch assembly, new stator bolt w/ threadlocker (although we suggest extra for safety) and wire harness cluster bracket.

We highly suggest replacing the W10734521 slider in combination with the clutch system. Additionally, the machine does need recalibrated after this part is installed to ensure proper operation.

Slider Assembly: https://bens-appliances.com/products/w10734521-whirlpool-slider-assembly

Replacement / Alternate Part#s:

W10754448, AP5956756, 3452770, PS10064562, W10447973, W10817398, W10905022

Note that this product is developed by Choice Parts Mfg. or Exact Replacement Parts and is not the OEM version.

Compatible models (models that use part W10754448):

WTW8500DC0 WTW8500DC1 WTW8500DC2 WTW8500DC3 WTW8500DC4 WTW8500DC5 WTW8500DC6 MVW7230HW0 MVW7230HW1 MVW7232HW0 MVW7232HW2 MVWB765FW4 MVWB765FW1 MVWB765FW3 WTW7500GW0 WTW7500GW2 WTW7500GW3 MVWB835DW0 WTW7500GC0 MVWB835DW1 WTW7500GC2 MVWB835DW3 WTW7500GC3 MVWB835DW4 MVWB835DW5 WTW8500DW6 MVWB765FC2 MVWB765FC4 MVW7230HC1 MVW7232HC1 MVWB835DC0 MVWB835DC2 MVWB835DC3 MVWB835DC5 WTW7000DW0 WTW7000DW1 WTW7000DW2 WTW7000DW3 WTW7000DW4 WTW8000DW0 WTW8000DW1 WTW8000DW2 WTW8000DW3 WTW8000DW4 WTW8000DW5 WTW7120HW0 7MMVW7230LC0 7MMVW7230LW0 7MMVWB835EW0 7MMVWB855EC0 7MMVWB955FC0 7MWTW7000EW0 7MWTW7300EW0 7MWTW8127LW0 7MWTW8500EC0 MVW8230HC0 MVWB755DW1 MVWB766FW0 MVWB855DC0 MVWB855DW0 MVWB865GC0 MVWB865GW0 MVWB955FC0 MVWB955FW0 MVWB965HC0 MVWB965HW0 WTW7120HC0 WTW7300DW0 WTW8120HC0 WTW8120HW0 WTW8700EC0 110.26132410 110.26132411 110.26132412 110.26132413 110.27132410 110.27132411 110.27132412 110.27132413 110.29132410 110.29132411 110.29132412 110.29132413 110.31632610 110.31632611 110.31632612 7MMVWB835EW1 7MMVWB855EC1 7MMVWB955FC1 7MWTW7000EW1 7MWTW7300EW1 7MWTW8500EC1 MVWB766FW2 MVWB855DC2 MVWB855DW1 MVWB865GW1 WTW7300DW1 WTW8700EC1 7MMVWB855EC2 7MWTW8500EC2 MVWB855DC4 MVWB855DW3 7MMVWB855EC3

Electromagnetic Clutch / Shift Assembly
