DA32-10105X Samsung Refrigerator Temperature Sensor
DA32-10105X Samsung Refrigerator Temperature Sensor
DA32-10105X Samsung Refrigerator Temperature Sensor

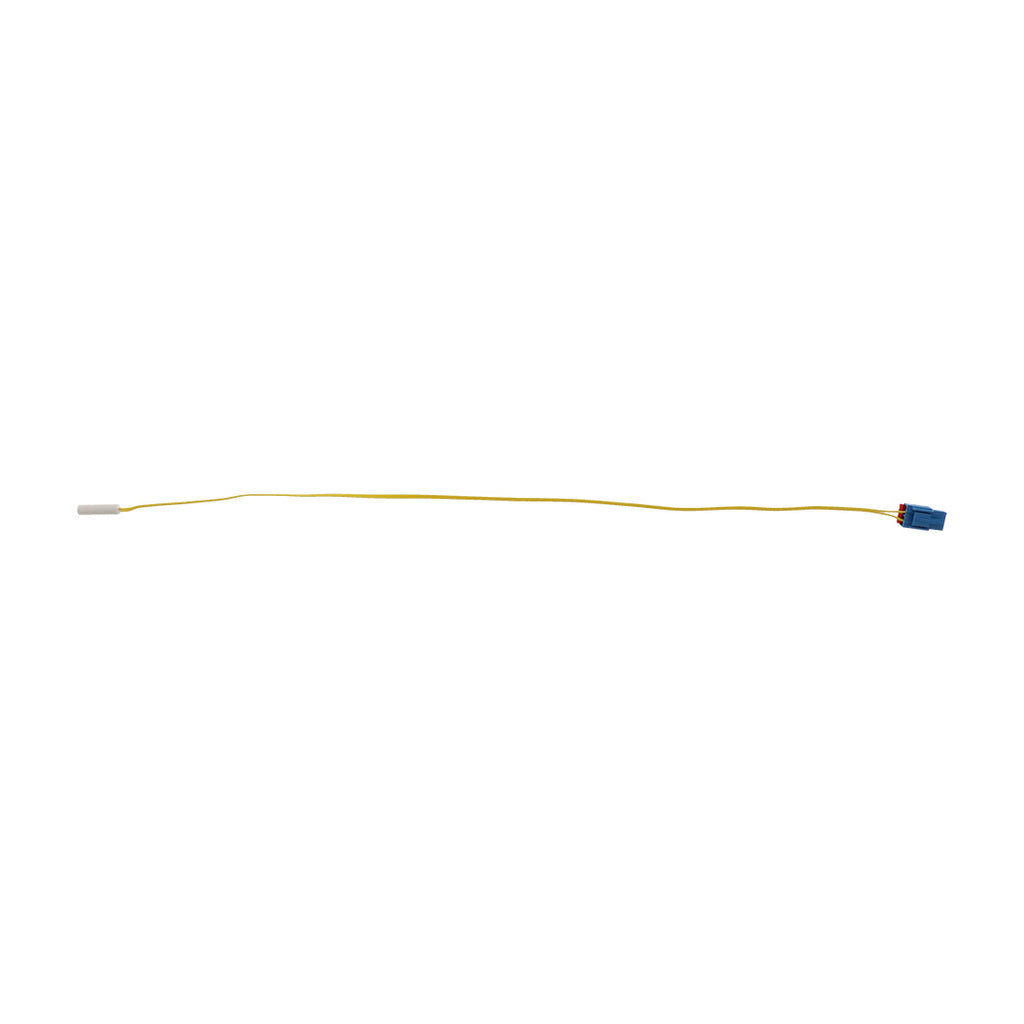

DA32-10105X Samsung Refrigerator Temperature Sensor - side view
Roll over image to zoom in Click on image to zoom
DA32-10105X Samsung Refrigerator Temperature Sensor
DA32-10105X Samsung Refrigerator Temperature Sensor
DA32-10105X Samsung Refrigerator Temperature Sensor
DA32-10105X Samsung Refrigerator Temperature Sensor - side view

DA32-10105X Samsung Refrigerator Temperature Sensor

Save 31%
Choice Parts
Price:
$9.99 $14.49

At a Glance

Fitment & FAQ

Which sensor do I need - this DA32-10105X or DA32-10104N?

It depends on your model and where the sensor mounts. Many RF263, RF266 and RFG models use this DA32-10105X, while others (like the RF23HC and RF28HM) need DA32-10104N.

Should I replace this sensor while I install the secondary heater kit?

Yes - it's an inexpensive preventive step while the fridge is already apart, and it is commonly paired with the secondary heater kit on compatible models.

My fridge shows the wrong temperature or freezes food. Could this sensor be the cause?

Yes - a faulty temperature sensor can cause wrong readings and poor temperature control. Check the evaporator fan and defrost/drain system too, since they cause similar symptoms.

Will a new temperature sensor alone stop ice building up on the back wall?

No - ice buildup usually comes from the defrost, drain or evaporator fan side, and the secondary heater kit is the usual fix. If it persists after that, the sensor may also be faulty.

Description

This is the primary thermostat for the refrigerator cabinet of your Samsung Refrigerator. The sensor is traditionally hidden behind the styrofoam cover, and controls what the refrigerator believes the temperature is in the refrigerator. If this sensor is off-value, it may trick the refrigerator into believing it is at the correct temperature, even if it is truly too warm, or too cold.

Sensor Value: 5,000 Ω at 77*F

Compatible with virtually all Samsung Refrigerators using the same plug type. Value is similar to all other Samsung and LG refrigerator sensors - terminals can be removed & spliced if needed.

Samsung Refrigerator Temperature Sensor

Samsung Refrigerator Temperature Sensor - Click to play
  • 5 stars: 7 (88%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (13%)
d
demetrio sanchez
Never got my parts

Never got my parts bad customer service
number to talk to someone replies in a week or so..stay away from this business bad service..

demetrio sanchez review photo demetrio sanchez review photo
A
Anatolii Batenev

DA32-10105X Samsung Refrigerator Temperature Sensor

K
Keith Ramer

DA32-10105X Samsung Refrigerator Temperature Sensor

R
Rita

I am 74 years old and fixed my Samsung refrigerator by myself with Ben video thank you the kit worked very well

A
Angel Rodriguez
Items Ordered

My ordered items were as marketed and worked well

C
Chris Horgan
Defroster

The defroster solved the icing problem. Fridge works great again.

G
Greg Norkiewicz

Samsung Refrigerator Temperature Sensor DA32-10105X

S
Sam Cullum
Samsung Refrigerator Temperature Sensor DA32-10105X

This unit and the Ben’s video on how to install are great. OEM sensor was off, showing 37° when the temperature was really 55°. This new sensor is spot on 👍
