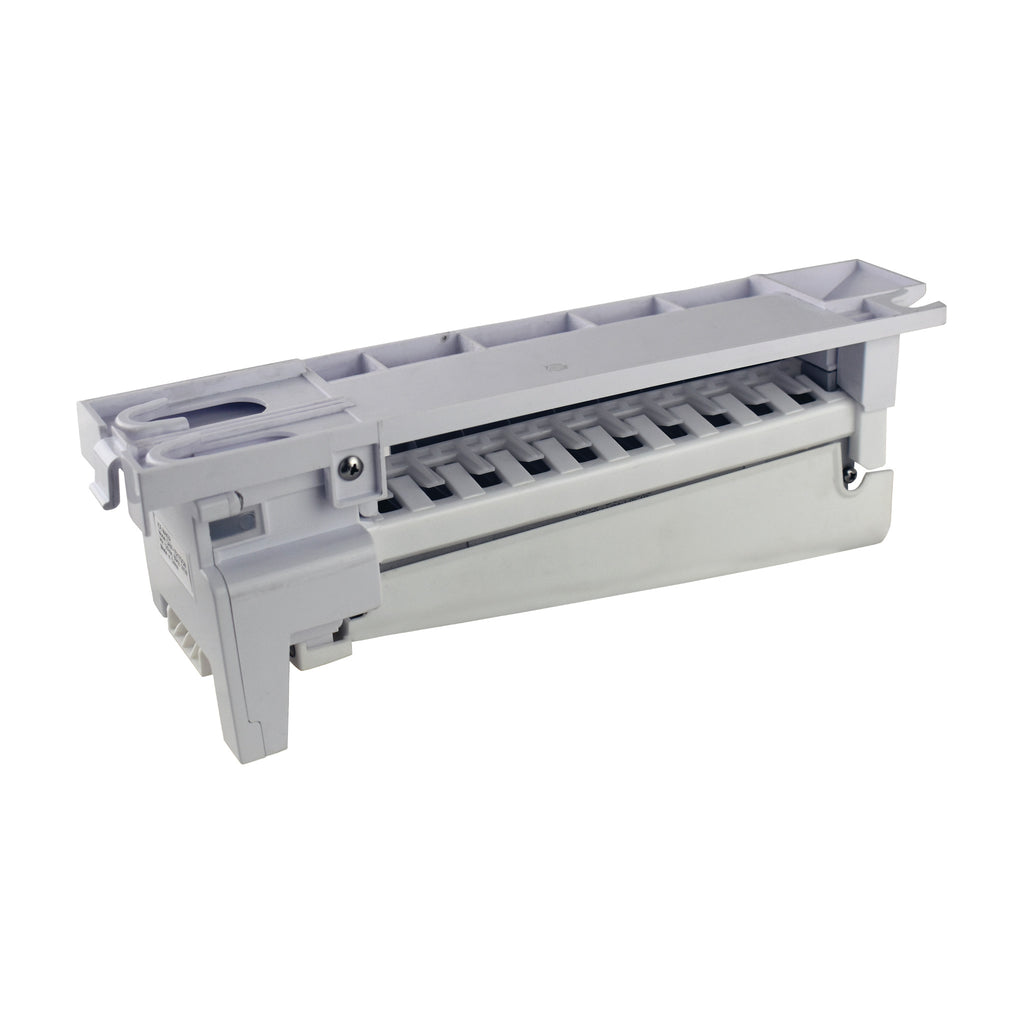

Samsung Refrigerator Icemaker - DA97-15217D
Samsung Refrigerator Icemaker - DA97-15217D
Samsung Refrigerator Icemaker - DA97-15217D
Samsung Refrigerator Icemaker - DA97-15217D - front view
Roll over image to zoom in Click on image to zoom
Samsung Refrigerator Icemaker - DA97-15217D
Samsung Refrigerator Icemaker - DA97-15217D
Samsung Refrigerator Icemaker - DA97-15217D
Samsung Refrigerator Icemaker - DA97-15217D - front view

Samsung Refrigerator Icemaker - DA97-15217D

Save 28%
Choice Parts
Price:
$82.99 $114.99

At a Glance

Will it fit my model?

Most-searched compatible models: RF28HMEDBSR, RF263BEAESG, RF263BEAESR, RF28HMEDBSG, RF263BEAESP, RF28HMEDBBC, RF28R7201SR, RF25HMEDBSR, RF28JBEDBSG, RF28HMEDBWW

Checks your model against 97 compatible models. The list is also in the description below.

Key features
  • Long-style 10-cube icemaker designed for full-depth Samsung refrigerators
  • Replaces Samsung icemaker part numbers DA97-12317A and DA97-12317B and DA97-15217A and DA97-15335A
  • Replacement for Samsung icemakers that are no longer operating properly
  • Replaces icemakers warped or damaged by overheating from a hair dryer or similar hot device
  • Addresses one of the common failure points when a Samsung ice maker stops working
Fitment & FAQ

My old icemaker is DA97-15217A, DA97-15217B, DA97-12317A or DA97-15335A. Will this replace it?

Yes - DA97-15217D is the current updated version and replaces DA97-15217A, DA97-15217B, DA97-12317A and DA97-15335A. A different ending letter is expected.

My icemaker keeps freezing up and frosting over. Will a new icemaker fix it?

No - not always on its own. Recurring frost usually comes from moisture or warm air entering the ice room. Pairing it with the Samsung Ice Maker & Moisture Heater Kit helps reduce icing.

Do I need to replace the auger or other parts along with this icemaker?

No - not usually. Replace the auger assembly only if it is damaged or also failing. Diagnose the problem first rather than replacing everything at once.

It chimes when I press the test button but never makes or dumps ice. Is the icemaker bad?

Yes - usually. If the test button only chimes and no harvest starts, or it only ejects ice after thawing, an internal motor, heater or sensor is failing and the assembly should be replaced.

I installed the new icemaker and it chimes but makes no ice. What should I check?

Give it time - the first ice usually takes 48-72 hours while the freezer reaches temperature, so wait over 72 hours. Then check the water supply, filter, fill tube for ice, and that the bin is seated.

Does this come with the control board?

No - this is the icemaker assembly only. The control board is a separate part and is not included.

Is this the long icemaker for full-depth fridges or the short one for counter-depth?

This is the longer 10-cube icemaker for full-depth Samsung refrigerators. Counter-depth models use the shorter DA97-13718C. Unsure? Contact us with your model number.

What can damage the icemaker?

Overheating the ice cabinet with a hair dryer, heat gun or other very hot warming device can warp or damage the icemaker's plastic.

How do I check if it fits my refrigerator?

Type your full model number into the fit checker on this page or find it in the compatible model list. Not listed? Contact us with your model number.

Will this fit a RF28HMEDBSR?

Yes - the RF28HMEDBSR is listed as a model that uses part DA97-15217D.

Will this fit a RF263BEAESG?

Yes - the RF263BEAESG is listed as a model that uses part DA97-15217D.

Description

If your Samsung Icemaker is no longer operating properly, replacing the icemaker may solve your problems. We now stock both the "Short" (13718C) and "Long" (15217D) ice maker for most Samsung ice makers made from 2013 through 2021.

These icemakers are a common part of the ice maker not working failure, and are also prone to warping or damage when the ice making cabinet is overheated by a hair dryer or other extremely hot warming device that isn't the defroster.

Note that the DA97-15217 unit is longer, and features 10 ice cubes for full-depth Samsung refrigerators, and the DA97-13718C is for the shorter, counter-depth 6-cube model of ice maker. If you have any confusion or questions about what is right for you, send us an E-mail.







The DA97-15217D Unit replaces, but is not limited to:

DA97-12317A,  DA97-12317B,  DA97-15217A,  DA97-15335A

Compatible models (models that use part DA97-15217D):

RF28HMEDBSR/AA RF28HMEDBSR RF263BEAESG/AA RF263BEAESR/AA RF263BEAESR RF28HMEDBSG/AA RF263BEAESP/AA RF28HMEDBBC/AA RF28HMEDBBC RF28R7201SR RF28R7201SR/AA RF25HMEDBSR/AA RF25HMEDBSR RF28JBEDBSG/AA RF28HMEDBWW/AA RF28HFEDBSR/AA RF28HFEDBSR RF263BEAEBC/AA RF263BEAEWW/AA RF263BEAEBC/CL RF263TEAESG/AA RF28HFEDBBC/AA RF263TEAESG RF28HDEDBSR/AA RF28R7201SG RF25HMEDBSG/AA RF28HFEDBSG/AA RF28HFEDBWW/AA RF28HFEDTSR/AA RF28JBEDBSR/AA RF28R7351SG/AA RF263TEAESR/AA RF263TEAESP/AA RF263TEAESR RF28HDEDBSG/AA RF28HFEDTSG/AA RF28HFEDTWW/AA RF28HFEDTBC RF28HFEDTBC/AA RF25HMEDBBC/AA RF25HMEDBWW RF25HMEDBWW/AA RF28HDEDTSR/AA RF263TEAEBC/AA RF263TEAEWW/AA RF27T5201SR RF28R7351DT/AA RF28HDEDPBC/AA RF28HDEDPWW/AA RF28K9070SR/AA RF265BEAESG/AA RF265BEAESR/AA RF32CG5400SR/AA RF26J7500SR/AA RF26J7500WW/AA RF28K9070SG/AA RF28K9380SG/AA RF28K9380SR/AA RF28K9580SG/AA RF28K9580SR/AA RF28M9580SG/AA RF28M9580SR/AA RF28N9780SG/AA RF28N9780SR/AA RF28NHEDBSG/AA RF28NHEDBSR/AA RF30KMEDBSG/AA RF30KMEDBSR/AA RF34H9950S4/AA RF34H9960S4/AA REFSEM1/SVC RF25HMIDBSG/AA RF26J7500BC/AA RF26J7510SR/AA RF27T5501SG RF28A6224SR/AA RF28MFEDES8/AA RF28NDEDBSG/AA RF28R6201DT/AA RF28R6201SR RF28R6202WW/AA RF28R6221SR RF28R6222WW/AA RF28R6241SR RF28R6301DT/AA RF28R6301SR RF32CG5400MT/AA RF32CG5900MT/AC RF32CG5900SR/AA RF32CG5B10SR/AA RF32CG5B30SR/AA RF70H30GEE/AA RF70H30GER/AA RF80H30CER/AA RT18M6215SR/AA RF28N9780SR RF28R6221SR/AA
