At a Glance
Will it fit my model?
Most-searched compatible models: RF28HMEDBSR, RF263BEAESG, RF263BEAESR, RF23J9011SR, RF260BEAESR, RF28HMEDBSG, RF263BEAESP, RF260BEAESG, RF28HMEDBBC, RF23J9011SG
Checks your model against 136 compatible models. The list is also in the description below.
Key features
Description
The DA32-10104N is a newer revised version of other defrost and temperature sensors on a Samsung Refrigerator. It is approximately 9", and the Molex harness style should be noted. If this part goes bad in your refrigerator, it can cause temperatures to be erratic, or too high or low, depending on how it failed, as well as premature defrost termination. A typical sensor such as this one should measure 5,000 ohms @ 77*F when tested with a multimeter. If the number goes above or below that by 10%, its likely bad, causing many issues for your refrigerator.
Compatible models (models that use part DA32-10104N):
RF28HMEDBSR/AA RF28HMEDBSR RF263BEAESG/AA RF263BEAESR/AA RF23J9011SR/AA RF260BEAESR/AA RF28HMEDBSG/AA RF263BEAESP/AA RF260BEAESG/AA RF28HMEDBBC/AA RF23J9011SG/AA RF28R7201SR/AA RF260BEAESP/AA RF25HMEDBSR/AA RF261BEAESR/AA RF28JBEDBSG/AA RF28HMEDBWW/AA RF28HFEDBSR/AA RF28HFEDBSR RF263BEAEBC/AA RF263BEAEWW/AA RF4287HARS/XAA RF4287HARS/XAC RF260BEAEWW/AA RF263TEAESG/AA RF28HFEDBBC/AA RF260BEAEBC RF260BEAEBC/AA RF28R7351SR/AA RF28HDEDBSR/AA RF261BEAESG/AA RF261BEAESP/AA RF24FSEDBSR/AA RF28R7201SG/AA RF28HFEDTSR/AA RF25HMEDBSG/AA RF28HFEDBSG/AA RF28HFEDBWW/AA RF28JBEDBSR/AA RF28R7351SG/AA RF26HFENDSR/AA RF261BEAEBC/AA RF261BEAEWW/AA RF263TEAESR/AA RF263TEAESP/AA RF28HFEDTBC/AA RF28HFEDTSG/AA RF28HFEDTWW/AA RF28R7201DT/AA RF25HMEDBBC/AA RF25HMEDBWW/AA RF28HDEDTSR/AA RF23HCEDBSR/AA RF263TEAEBC/AA RF263TEAEWW/AA RF323TEDBSR/AA RF26HFENDBC/AA RF26HFENDWW/AA RF28R7351DT/AA RF323TEDBSR RF23HCEDBBC/AA RF23HCEDBWW/AA RF28HDEDPBC/AA RF28HDEDPWW/AA RF28R7551DT/AA RF28R7551SG/AA RF28R7551SR/AA RF28K9070SR/AA RF22R7351SR/AA RF24R7201SR/AA RF22KREDBSG/AA RF323TEDBBC/AA RF23HCEDTSR/AA RF265BEAESG/AA RF265BEAESR/AA RF323TEDBWW/AA RF4267HARS/XAA RF30HBEDBSR/AA RF220NCTABC/AA RF220NCTASG/AA RF220NCTASR/AA RF220NCTAWW/AA RF22K9381SG/AA RF22K9381SR/AA RF22K9581SG/AA RF22K9581SR/AA RF22KREDBSR/AA RF22NPEDBSG/AA RF22NPEDBSR/AA RF23HSESBSR/AA RF23HTEDBSR/AA RF24J9960S4/AA RF26J7500BC/AA RF26J7500SR/AA RF26J7500WW/AA RF28HMELBSR/AA RF28K9070SG/AA RF28K9380SG/AA RF28K9380SR/AA RF28K9580SG/AA RF28K9580SR/AA RF28NHEDBSG/AA RF28NHEDBSR/AA RF30KMEDBSG/AA RF30KMEDBSR/AA RF31FMEDBSR/AA RF34H9960S4/AA RF220NCTASP/AA RF221NCTASR/AA RF22M9581SG/AA RF22M9581SR/AA RF22N9781SG/AA RF22N9781SR/AA RF22R7351DT/AA RF22R7351SG/AA RF22R7551DT/AA RF22R7551SG/AA RF22R7551SR/AA RF24R7201DT/AA RF24R7201SG/AA RF25HMIDBSR RF28M9580SG/AA RF28M9580SR/AA RF28N9780SG/AA RF28N9780SR/AA RF30HDEDTSR/AA RF31FMEDBBC/AA RF31FMEDBWW/AA RF31FMESBSR/AA RF32FMQDBSR/AA RF32FMQDBXW/AA RF34H9950S4/AA RF4267HAWP/XAA RH22H9010SR/AA RH29H9000SR/AA RF220NCTAWW/ML
Questions & answers
Samsung Refrigerator Defrost Sensor
Thanks to their YouTube videos and the quick parts kit, I was able to fix my fridge with ease!

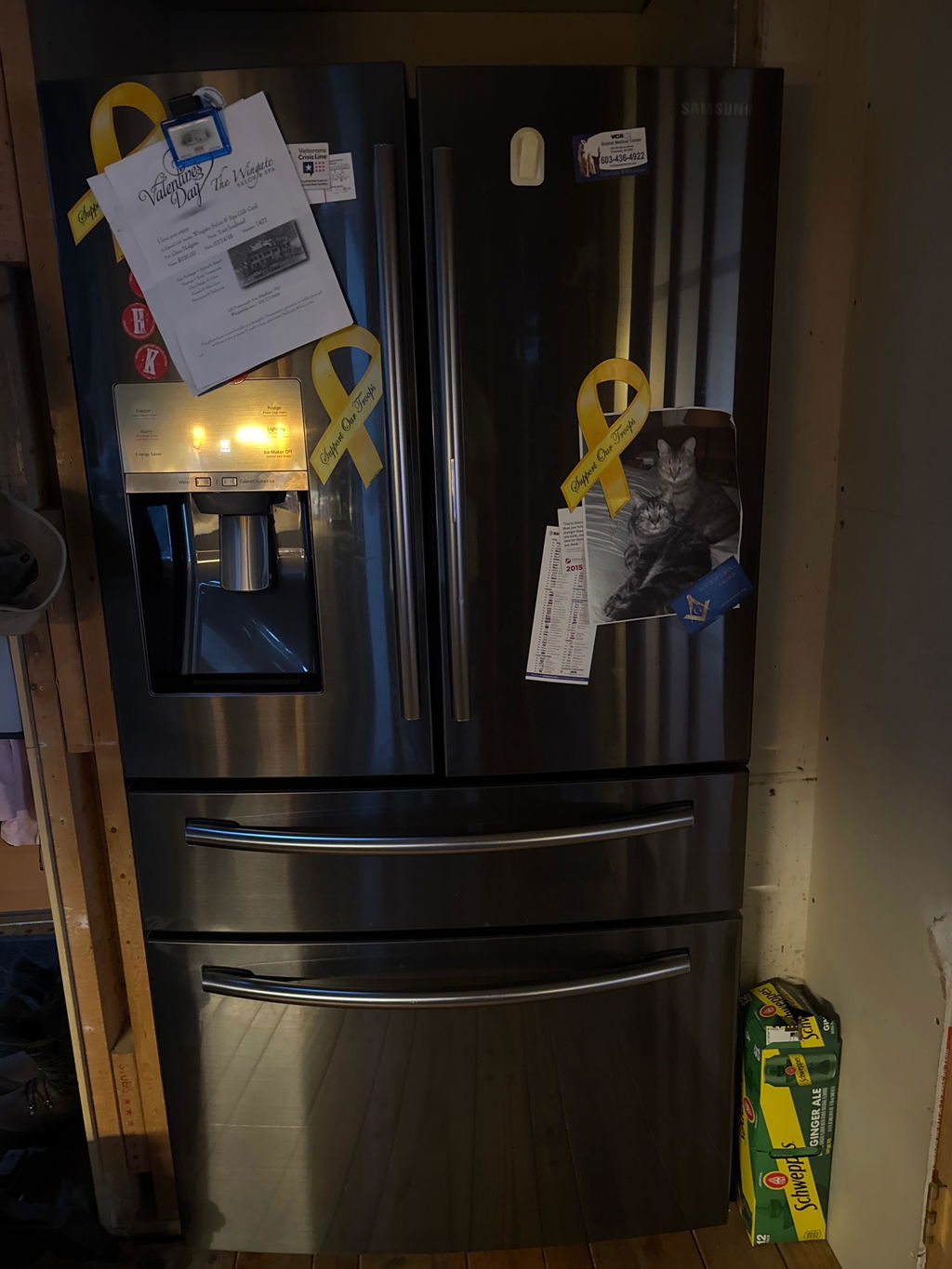

We have a Samsung beautiful fridge with two doors for the fridge and a drink drawer and the freezer on bottom. We never had an issue with the freezer or the drink drawer but the fridge would over time freeze up and wouldn’t slow the fan to blow cool air around the fridge. So we watched a video on this exact fridge and how to replace the fan. Thinking the fan was bad. Nobody would work on this Samsung so we were left to diagnose and repair ourselves. After replacing the fan two times and wasting about $200 in food and the fridge not fixed, we found Bills Appliance site and his exact video of our fridge and how to officially and correctly repair the issue. The issue all surrounded the fridge never defrosting properly causing the ice to build up and smother the circulation fan. Then it wouldn’t cool anymore. Bills Appliance sold me a retrofit additional defrosting wire that gets put in place on the cooling fins and wired into the current connectors. The whole job was very easy to do if you pay attention to the video. We haven’t had an issue since and the fridge is working perfect again. This kit saved us from buying another ridiculous $4k fridge to replace this one.
I noticed my refrigerator temp appeared off; investigating the problem I found the ice buildup on that back wall. After viewing your video 2x and obtaining the kit necessary to add the additional heater- problem addressed in about 90 minutes! The refrigerator temp has been consistent at 35-36 degrees without any issues! Great videos, great tool kit- bravo!!
DA32-10104N Samsung Refrigerator Defrost Sensor
Purchased the kit for my dad's 'fridge. I realize there are different models, but on the video, Ben replaced the sensor, and it had a long wire/pigtail. The one that arrived in my kit has a wire that is about 1/3 the length of the one in the video. Couldn't use it. Also, the foam/mylar tape for the bottom of the drain trough was completely different than Ben's tape. Made it difficult to install the larger cover. the front cover has a lip that helps direct the water into the drain, and I am not sure it even overlapped properly, as the lip made contact with the mylar foam, and bungled up the bottom of the front cover.
DA32-10104N Samsung Refrigerator Defrost Sensor
It works very good and helps keep the ice off the back of the fridge. I recommend this to fix the issue. Very easy to install and have it working.
Your defrost sensor solved a problem that Samsung created and they could never fic
Black possy taps aren’t fitting good.Before you are selling blue ones which is fitting perfectly.Please next time send blue ones
Installed this over a month ago and worked like a charm. Ben’s YouTube tutorial was straight forward and very helpful. If you’re having the issue of freezing coils in the refrigerator compartment. Would highly recommend.
So far so good a few weeks in
Ben and his team were so helpful getting me the right part. It's been two months since I installed it and my refrigerator is working perfectly.
Great product
Ok, I waited several months to report back and I can say this repair (defrost sensor and additional heating element) has taken care of my reoccurring freeze up and fan noise.
Kudos to Ben and his knowledge of these refrigerators. I was ready to recycle this one and buy new but this extended the life of this Samsung refrigerator.
Thanks a bunch!
Tony C.
We received the parts quickly and a video to show us how to put it in. We put the parts in fridge and seem to be doing fine. Saved us a lot of money!
Thank you Bens parts👍
After some research online, I was able to determine that there was an issue with our Samsung's defrosting. I watched Ben's video a couple of time before ordering the kit from his website. It has been working great ever since. Thanks, Ben!
Video and supplies worked very well. The fridge is working as new. Bought 7 years ago. Tip: I have used our waterpik to shoot hot water in the ice clocked drain. So no day waiting to defrost. Thanks.
I installed the parts and my Samsung refrigerator is working great!
I am so glad I stumbled across this repair video from YouTube which then connected me to the website. My Samsung refrigerator was not cooling properly but the freezer was. I had an appliance repair person come and look at it, paid them about $150 to tell me that I needed to spend $1,250 to get it fixed. I knew that my refrigerator was still in very good condition as it wasn't that old so I figured I would try the repair kit. Everything I needed to it fixed was provided, my brother was visiting for the weekend and he offered to help me. That evening my refrigerator was back up and running. It's been a few weeks now and it is still very cold. I am so glad I spent $60, follow the video that was very clear and got the job done ourselves. Thank you so much for saving me a butt-load of money.
I was hoping this would fix this problem with my Samsung fridge but sadly it didn’t. I have tried all your fixes. Any other suggestions you may have for this issue??
DA32-10104N Samsung Refrigerator Defrost Sensor
DA32-10104N Samsung Refrigerator Defrost Sensor
My Samsung was not cooling in the main refrigerator compartment. It was frozen in the back and would not defrost. Watched the video on this item and decided to try it. I thawed the ice with heat then followed the installation instructions per the video.
I have had NO issues with my refrigerator since installing and my fresh food compartment is holding steady at 38 degrees! I HIGHLY recommend this if you have the same issue.
Was easy install following the video overview. Plan for 1 full day for defrosting.
Everything worked great
So far, seems to have corrected the issue
Worked great
bought sensor to stop refrigerator icing but it also seems to make the refrigerator colder at the same temperature as before!?
I ordered the Samsung de-icing kit and back panel, the back panel ended up being the incorrect size. Jeff, the customer service rep at Ben's helped get me the correct one fast and the installation was a breeze. Thanks so much for the help, and I will definitely be shopping here in the future!
